06PL-08FP STRAIGHT BRASS

Description & Features

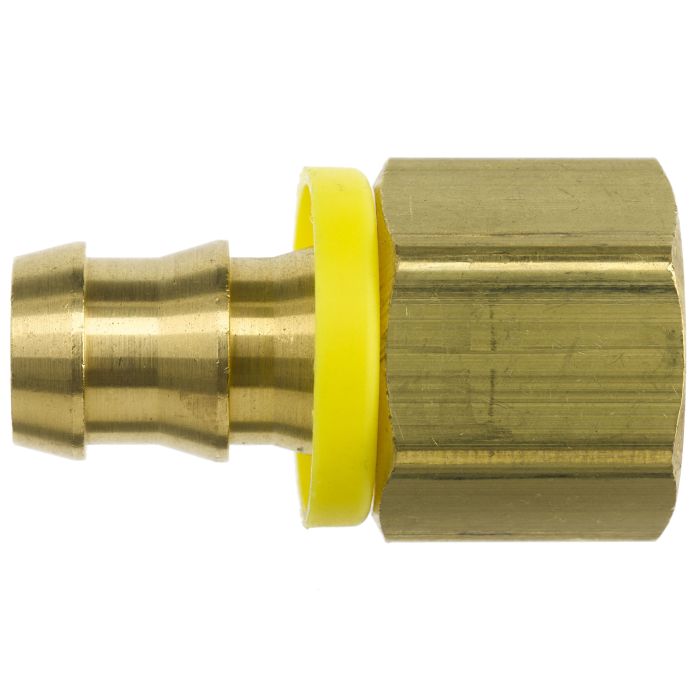

This straight brass fitting, identified as 06PL-08FP STRAIGHT BRASS, features a 3/8" push lock hose barb connection with ISO 12151 thread specification and a 1/2-14 female NPTF connection with SAE J476 thread specification.

It has an overall length of 1.772 inches.

SKU: 2119-06-08-B

Supplier Part Number (MPN): 2119-06-08-B

Specifications

Connection Size 1 3/8 in	Connection Size 2 1/2 in	Connection Type Barbed, FPT	Connection Type 1 Push-On Hose Barb	Connection Type 2 Female Pipe	Dimension Standards ISO 12151, SAE J476	Dimensions 1.772 in L	Finish Natural	Fitting Type Adapter	Material Brass	Material Construction C36000 Brass	Series 2119 Series	Thread B2 Drill Dimensions 0.531 in	Thread Size 1/2-14

Product Questions & Answers (1)

Question by: Wes W on Jul 26, 2025, 9:10 PM

Will this fitting hold up alright if I'm using it for hydraulics on farm equipment?

Answer by: Customer Support on Jul 28, 2025, 12:06 PM

Designed for hydraulic applications, this straight brass fitting should provide a reliable connection point. It's made from quality brass material, which should stand up to typical hydraulic pressures in farm equipment.
