08PL-08MP 90 DEG ELB BRASS

Description & Features

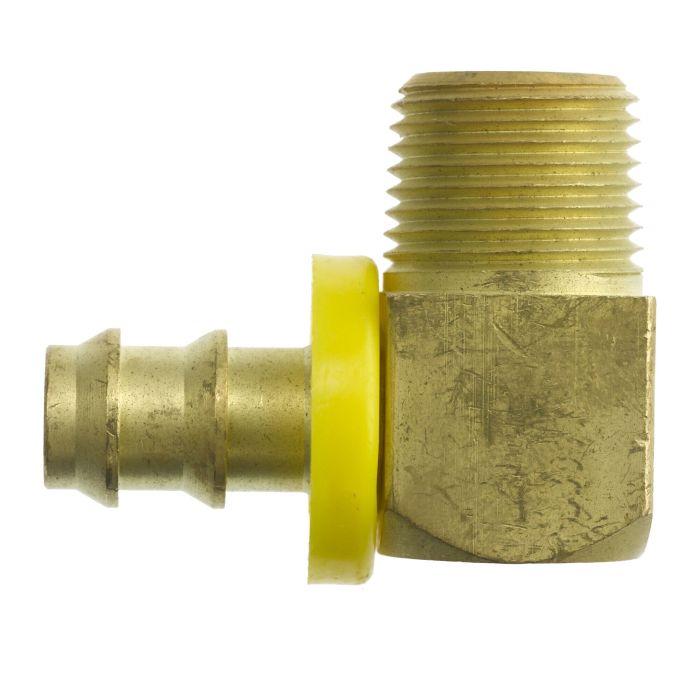

This forged brass 90-degree elbow features a 1/2-14 Male NPTF thread to SAE J476 specification on one end and a 1/2 ISO 12151 push lock hose barb on the other.

The 08PL-08MP 90 DEG ELB BRASS is part of the Brennan 2120 series, with a centerline length of 1.194 mm and an overall length of 1.496 mm.

SKU: 2120-08-08-B

Supplier Part Number (MPN): 2120-08-08-B

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Barbed, MPT	Connection Type 1 Push-On Hose Barb	Connection Type 2 Male Pipe	Dimension Standards ISO 12151, SAE J476	Dimensions 1.496 in L	Finish Natural	Fitting Type 90 deg Elbow	Material Brass	Material Construction CA377 Brass	Series 2120 Series	Thread B2 Drill Dimensions 0.531 in	Thread Size 1/2-14

Product Questions & Answers (1)

Question by: Dustin H on Jan 1, 2026, 11:25 AM

So, is that 1.194 mm measurement the height of the elbow, or how far it sticks out from the pipe?

Answer by: Customer Support on Jan 3, 2026, 8:54 AM

That 1.194 mm measurement refers to the centerline length, while the overall length, or how far it sticks out, is 1.496 mm.
