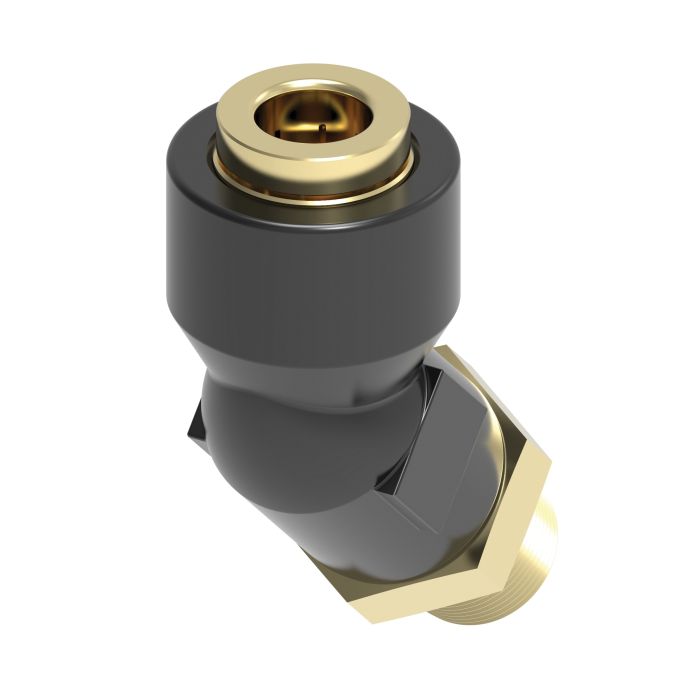

Constructed from brass, this field-attachable adapter fitting provides a 45-degree Quick-Connect Air Brake (Q-CAB) connection to a 1/4 in. male NPTF end, designed for reliable use in air brake system assemblies. The Danfoss / Eaton Weatherhead Adapter 45D, -05 Tube accommodates a -6 hose dash size and is rated for use in air brake applications where temperatures do not exceed +200°F.
Certified to SAE J2494-3 and SAE J1131, and compliant with DOT FMVSS 571.106, this fitting meets established standards for air brake circuit use. It is not suitable for fuel, water, oil, or environments where battery acid contact with tubing is possible. The field-attachable design supports faster assembly without specialized tooling, making it a practical choice for service and repair applications. Weighing 0.5 lb, the fitting ships individually.
SKU: 217-35006-03
Supplier Part Number (MPN): 217-35006-03
|
Alternate Part Numbers
MINO-00015X04553
|
Application
Air brake systems except
where temperatures exceed +200°F or where battery acid can drip on tubing. Not for fuel, water or oil. |
Certifications
SAE J2494-3|SAE J1131
|
Compliances
DOT FMVSS 571106
|
Brand
Danfoss (IGS)
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
End Gender 2
13556
|
End Size 2
0.25
|
End Type 1
Line/Hose/Tube
|
End Type 2
NPTF
|
Features
Fit for wide range of applications|Durable and dependable|Cut assembly times and boost production
|
Hose Dash Size
-6
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
Product Material
Brass
|
Product Width
0.75
|
Sub Brand
Weatherhead
|
Supplier Part Number
217-35006-03
|
Product Weight
0.14 lbs
|
