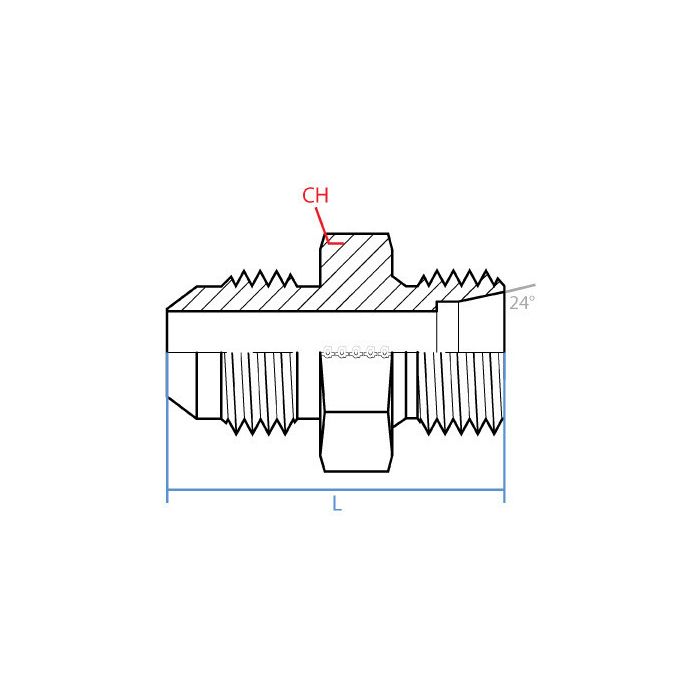

main product photo

Stainless Mjic X Male Din2353L

Ask A Question

Description & Features

Constructed from stainless steel, this straight hydraulic adapter connects a 1-5/16-12 UN Male JIC fitting on one side to an M36 x 2.0 Male Din 2353 Light (L28) tube end on the other. The stainless steel construction makes it well suited for hydraulic systems exposed to corrosive environments or stringent cleanliness requirements. Overall length is 49.5mm with a 41mm wrench width across the body.

The Stainless Mjic X Male Din2353L is an Adaptall product, designed to provide a reliable transition between JIC and DIN 2353 Light series tube connections in a single compact adapter. The 1-inch JIC side and L28 DIN side make it appropriate for medium-to-large bore hydraulic circuits where both connection standards are present in the same assembly.

SKU: SS9605-16-L28-36

Supplier Part Number (MPN): SS9605-16-L28-36

Specifications

Connection Size 1
1 in
Connection Size 2
24 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
54 mm L
Fitting Type
Adapter
Hex Size
41 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9605 Series
Thread Size
1-5/16-12 x M36x2

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Frank G on Jul 23, 2025, 12:03 PM
got a system running JIC on one end and DIN fittings on the other, this stainless one gonna bridge that gap without needing extra pieces?
Answer by: Customer Support on Jul 24, 2025, 4:40 PM
One adapter handles the whole transition. One side is a 1-5/16-12 UN Male JIC and the other is an M36 x 2.0 Male DIN 2353 Light series tube end, so you're going straight from JIC to DIN in a single compact unit. No extra hardware needed in between.
Question by: Kent G on Feb 7, 2026, 12:30 PM
got a hose end that’s 1-5/16-12 UN JIC male and i need to tie into an M36 x 2.0 DIN 2353 Light tube end. is this the right adapter?
Answer by: Customer Support on Feb 8, 2026, 9:46 PM
For a straight transition between those two standards, this adapter matches a 1-5/16-12 UN Male JIC on one side and an M36 x 2.0 Male DIN 2353 Light (L28) tube end on the other. It is a single-piece stainless adapter meant to bridge JIC to DIN 2353 Light in one compact fitting.
Question by: Cody A on Apr 28, 2025, 5:39 PM
Will this here fitting hold up alright if it's gonna be seeing some nasty chemicals on the regular?
Answer by: Customer Support on Apr 29, 2025, 9:30 PM
Being made from stainless steel, this adapter is a good choice where you've got corrosive stuff around or if things need to be extra squeaky clean.
