Din X Male Bspt

Description & Features

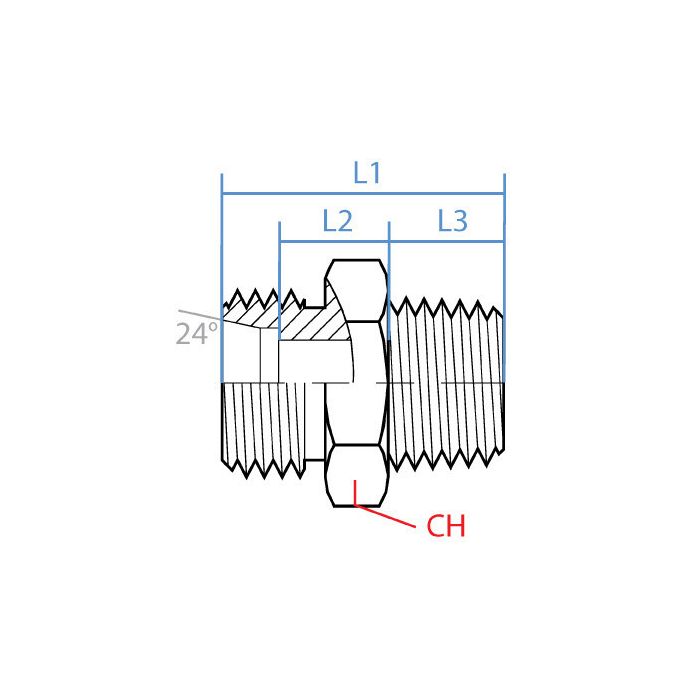

Crafted from durable steel, the Adaptall Din X Male Bspt fitting features a straight design ideal for robust hydraulic applications. This fitting is engineered with precision to connect M52 x 2.0 DIN tube with a 1-1/2" BSPT male thread, ensuring a secure and leak-resistant connection. The male gender on both sides offers straightforward integration with existing systems, ensuring compatibility and reliability in high-pressure environments.

Specifically designed for industrial use, the Adaptall brand guarantees quality and performance, making this fitting suitable for various demanding applications. The robust construction and precise threading enhance its functionality, making it a reliable choice for maintaining efficient hydraulic use.

SKU: 5011L-42-24

Supplier Part Number (MPN): 5011L-42-24

Specifications

Connection Size 1 L42	Connection Size 2 1-1/2 in	Connection Type Male BSP, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male BSPT	Dimension Standards DIN 2353, DIN EN 10226-1	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 55 mm	Material Steel	Material Construction Carbon Steel	Series 5011 Series	Thread Size M52x2 x 1-1/2-11

Product Questions & Answers (3)

Question by: Freddie H on Aug 5, 2025, 7:30 AM

Will this fitting hold up okay in a hydraulic system that sees pretty consistent high pressure?

Answer by: Customer Support on Aug 6, 2025, 3:29 PM

Crafted from durable steel, this Adaptall fitting is designed to maintain a secure and leak-resistant connection in high-pressure hydraulic environments.

Question by: Curt B on Oct 3, 2025, 1:17 PM

Got a line running M52 x 2.0 DIN tube that needs to tie into a 1-1/2 inch BSPT port, this fitting do that straight through?

Answer by: Customer Support on Oct 5, 2025, 6:33 AM

Yeah, that's exactly what this one's built for. One side threads onto M52 x 2.0 DIN tube, the other end is a 1-1/2 inch BSPT male thread, and the straight body means no angle change between the two connections. Both sides are male, so you're mating into female-threaded ports or couplings on each end. Steel construction keeps it solid in industrial hydraulic setups where you need that connection to hold without fussing with it.

Question by: Dustin M on Aug 15, 2025, 2:45 PM

got a tube with M52 x 2.0 din threads, will this fitting screw right on and give me a 1-1/2 BSPT male on the other end?

Answer by: Customer Support on Aug 17, 2025, 6:21 AM

For a straight adapter between those two thread types, it is set up exactly that way. Side 1 is M52 x 2.0 DIN tube, male, and side 2 is R 1-1/2 - 11 BSPT, male, so it connects an M52 x 2.0 DIN tube connection over to a 1-1/2 inch BSPT male thread.
