Internal Pipe /SAE O-Ring Boss

Description & Features

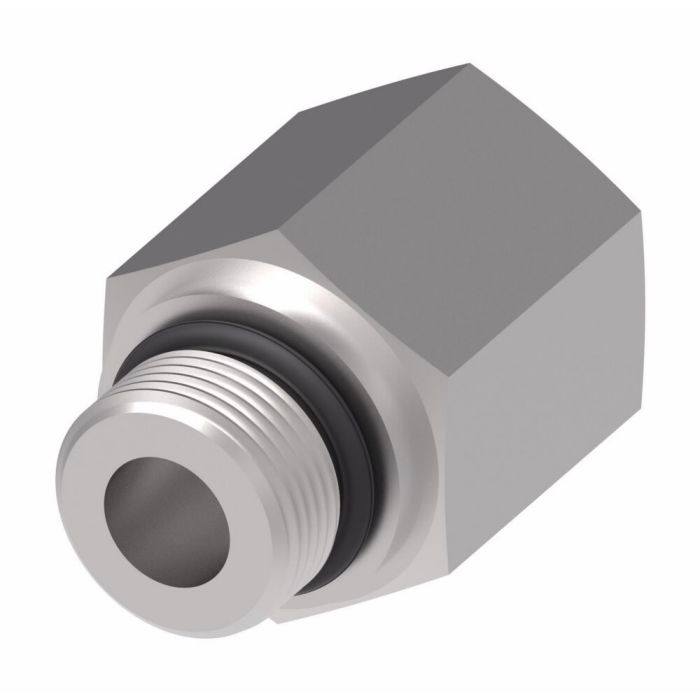

This Eaton Aeroquip straight adapter features a 0.75 NPTF female end and a 0.875 SAE ORB male end. The Internal Pipe /SAE O-Ring Boss adapter is constructed from carbon steel and finished with Dura-Kote plating, providing superior corrosion resistance. It offers design flexibility and withstands higher operating pressures than SAE standards.

Applications include use in marine/military, chemical processing, pulp and paper, food and beverage, and off-shore drilling environments. This straight adapter is designed for a minimum working temperature of -40 degrees.

SKU: 2216-12-10S

Supplier Part Number (MPN): 2216-12-10S

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 5/8 in	Connection Size 2 3/4 in	Connection Type FNPT, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 Female NPTF	Dimension Standards SAE J1926	Dimensions 1.77 in L	Finish Dura-Kote™	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 2216 Series	Thread Size 3/4-14, 7/8-14

Similar Products

Model Number	Connection Size 1	Connection Size 2
2216-16-16S Female NPT To Male ORB Adapter	1 in	1 in
2216-8-10S Female NPT To Male ORB Adapter	5/8 in	1/2 in
2216-16-20S Female NPT To Male ORB Adapter	1-1/4 in	1 in
2216-8-8S Female NPT To Male ORB Adapter	1/2 in	1/2 in
2216-6-8S Female NPT To Male ORB Adapter	1/2 in	3/8 in
2216-20-20S Female NPT To Male ORB Adapter	1-1/4 in	1-1/4 in
2216-24-24S Female NPT To Male ORB Adapter	1-1/2 in	1-1/2 in
2216-12-16S Female NPT To Male ORB Adapter	1 in	3/4 in
2216-8-12S Female NPT To Male ORB Adapter	3/4 in	1/2 in
2216-6-12S Female NPT To Male ORB Adapter	3/4 in	3/8 in
2216-4-6S Female NPT To Male ORB Adapter	3/8 in	1/4 in
2216-12-12S Female NPT To Male ORB Adapter	3/4 in	3/4 in
2216-4-5S Female NPT To Male ORB Adapter	5/16 in	1/4 in
2216-2-4S Female NPT To Male ORB Adapter	1/4 in	1/8 in
2216-4-4S	1/4 in	1/4 in
2216-4-8S	1/4 in	1/2 in
2216-6-6S	3/8 in	3/8 in
2216-6-10S	3/8 in	5/8 in
2216-12-14S	7/8 in	3/4 in
2216-32-32S	2 in	2 in

Product Questions & Answers (1)

Question by: Dwight M on Jun 25, 2025, 11:28 AM

what industries is this adapter actually built for, like is it just general shop use or something more specific?

Answer by: Customer Support on Jun 27, 2025, 6:15 AM

Carbon steel construction with Dura-Kote plating puts this one squarely in demanding environments. Marine, military, offshore drilling, chemical processing, pulp and paper, and food and beverage are all listed applications, so it handles exposure and pressure well beyond what a standard shop fitting would see.
