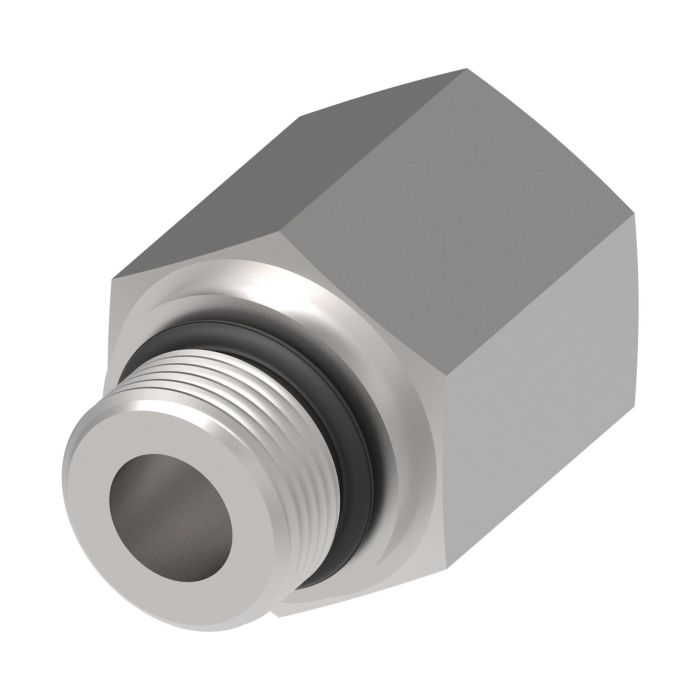

DANFOSS / EATON #12 FP (RIGID) X #14 MORB

Description & Features

This carbon steel adapter from Danfoss / Eaton features a #12 female rigid pipe thread on one end and a #14 male SAE O-ring Boss on the other. The DANFOSS / EATON #12 FP (RIGID) X #14 MORB is suitable for use in marine, military, chemical processing, pulp and paper, and food and beverage applications, as well as off-shore drilling.

Dura-Kote plating provides superior corrosion resistance. This straight adapter offers design flexibility with hundreds of styles to choose from and higher operating pressures above SAE standards. Minimum working temperature is -40 degrees.

SKU: 2216-12-14S

Supplier Part Number (MPN): 2216-12-14S

Alternate Part Numbers: C1HZ27

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 7/8 in	Connection Size 2 3/4 in	Connection Type FNPT, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 Female NPTF	Dimension Standards SAE J1926	Dimensions 1.68 in L	Finish Dura-Kote™	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 2216 Series	Thread Size 1-3/16-12 x 3/4-14

Product Questions & Answers (1)

Question by: Gene R on Nov 24, 2025, 6:17 AM

Will this adapter hold up okay in a saltwater environment, like on a boat?

Answer by: Customer Support on Nov 26, 2025, 6:30 AM

Dura-Kote plating gives this adapter good corrosion resistance, which makes it suitable for marine applications where it might be exposed to saltwater.
