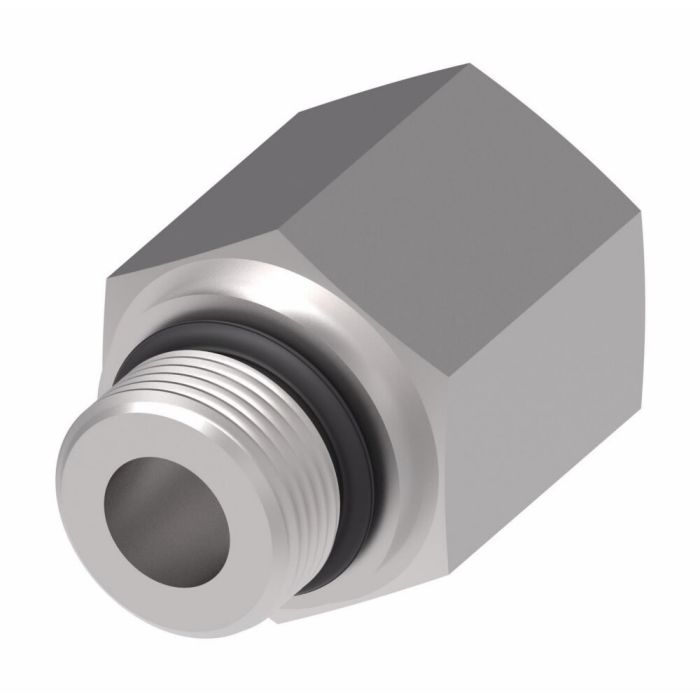

Designed for demanding industrial environments, this carbon steel straight adapter provides a #32 Female Pipe Rigid (NPTF) to #32 Male O-Ring Boss (SAE ORB) connection in a fixed, non-swivel configuration. The Danfoss / Eaton 2216-32-32S is part of the Aeroquip 2216 Series and is rated for operating pressures above SAE standards, making it well suited for high-pressure hydraulic circuit work.
Dura-Kote plating provides corrosion resistance suitable for use in marine, military, offshore drilling, chemical processing, food and beverage, and pulp and paper applications. The adapter is rated for a minimum working temperature of -40°F, supporting reliable performance in cold-climate or refrigerated process environments. At 2.88 inches in width and 0.8 lb, it is a practical mid-size fitting within the extensive Aeroquip adapter range.
SKU: 2216-32-32S
Supplier Part Number (MPN): 2216-32-32S
|
Alternate Part Numbers
MINO-00925X09658
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 1
2
|
End Type 1
NPTF
|
End Type 2
SAE ORB
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Straight Adapters
|
Item Type
NPTF Female / SAE ORB Male Straight Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
2.88
|
Sub Brand
None
|
Supplier Part Number
2216-32-32S
|
Product Weight
1.94 lbs
|
