Internal Pipe /SAE O-Ring Boss

Description & Features

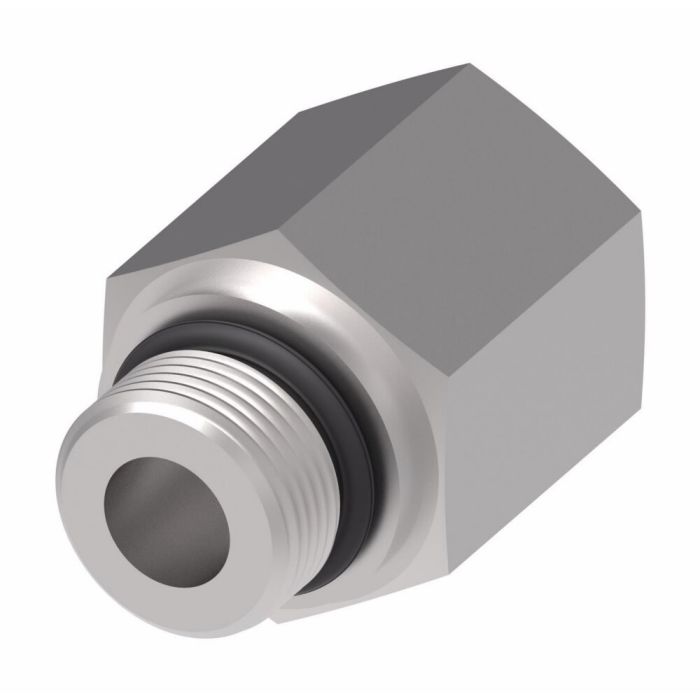

Ideal for demanding environments in marine, military, and industrial applications, the Eaton Aeroquip NPTF Female / SAE ORB Male Straight Adapter ensures reliable performance with its robust carbon steel construction. Engineered to meet higher operating pressures above SAE standards, this adapter is equipped with Dura-Kote plating, offering superior corrosion resistance to extend the product's lifespan even in harsh conditions.

Featuring a versatile design, it accommodates a 0.25-inch NPTF female end and a 0.4375-inch SAE ORB male end, providing flexibility for various hydraulic systems. This adapter is a part of the Eaton 2216 Series and integrates seamlessly into chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling setups.

SKU: 2216-4-4S

Supplier Part Number (MPN): 2216-4-4S

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type FNPT, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 Female NPTF	Dimension Standards SAE J1926	Dimensions 1.2 in L	Finish Dura-Kote™	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 2216 Series	Thread Size 7/16-20, 1/4-18

Similar Products

Model Number	Connection Size 1	Connection Size 2
2216-16-16S Female NPT To Male ORB Adapter	1 in	1 in
2216-8-10S Female NPT To Male ORB Adapter	5/8 in	1/2 in
2216-16-20S Female NPT To Male ORB Adapter	1-1/4 in	1 in
2216-8-8S Female NPT To Male ORB Adapter	1/2 in	1/2 in
2216-6-8S Female NPT To Male ORB Adapter	1/2 in	3/8 in
2216-20-20S Female NPT To Male ORB Adapter	1-1/4 in	1-1/4 in
2216-24-24S Female NPT To Male ORB Adapter	1-1/2 in	1-1/2 in
2216-12-16S Female NPT To Male ORB Adapter	1 in	3/4 in
2216-8-12S Female NPT To Male ORB Adapter	3/4 in	1/2 in
2216-6-12S Female NPT To Male ORB Adapter	3/4 in	3/8 in
2216-4-6S Female NPT To Male ORB Adapter	3/8 in	1/4 in
2216-12-12S Female NPT To Male ORB Adapter	3/4 in	3/4 in
2216-4-5S Female NPT To Male ORB Adapter	5/16 in	1/4 in
2216-2-4S Female NPT To Male ORB Adapter	1/4 in	1/8 in
2216-4-8S	1/4 in	1/2 in
2216-6-6S	3/8 in	3/8 in
2216-6-10S	3/8 in	5/8 in
2216-12-10S	5/8 in	3/4 in
2216-12-14S	7/8 in	3/4 in
2216-32-32S	2 in	2 in

Product Questions & Answers (1)

Question by: Curt R on May 12, 2025, 9:49 AM

Got a line running 1/4 inch NPTF female and need to tie into a 7/16 SAE O-ring boss port. this the right adapter for that?

Answer by: Customer Support on May 14, 2025, 6:43 AM

That's exactly the configuration this part handles. The 2216-4-4S runs a 1/4 inch NPTF female on one end and a 7/16-20 SAE O-ring boss male on the other, straight through with no angle. Carbon steel construction and the Dura-Kote plating give it solid corrosion resistance, so it holds up well in demanding environments. Weighs under a pound and ships as a single unit.
