DANFOSS / EATON ADP

Description & Features

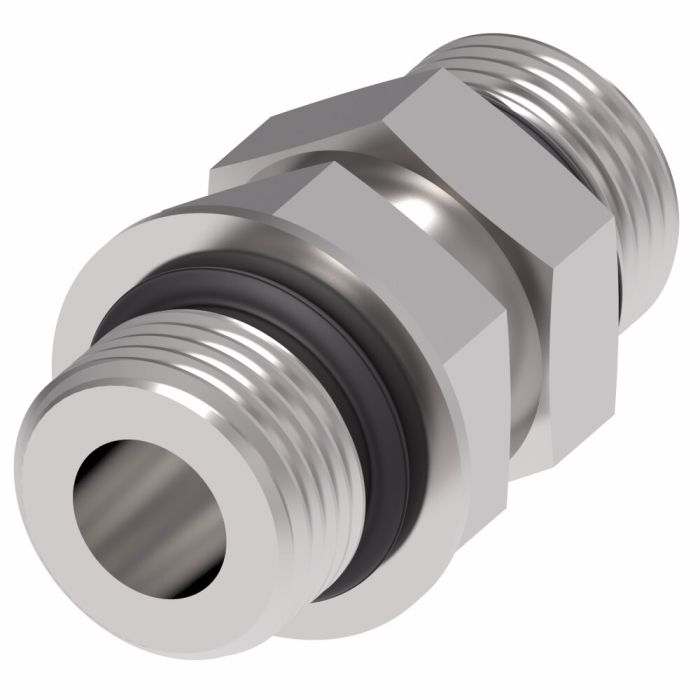

Constructed from carbon steel with Dura-Kote plating, this SAE O-Ring Boss to SAE O-Ring Boss straight adapter is built to withstand demanding industrial environments where corrosion resistance is a priority. Both ends feature male SAE ORB connections, making it well suited for inline hydraulic line configurations across a wide range of systems.

The Danfoss / Eaton Adp is rated for operating pressures above standard SAE specifications and carries a minimum working temperature of -40°F, supporting reliable performance in harsh or temperature-variable conditions. Its applications span marine and military equipment, chemical processing, pulp and paper, food and beverage processing, and offshore drilling, industries where fitting integrity under pressure is critical.

Part of Aeroquip's 2220 Series, this adapter offers design flexibility within a broad catalog of available configurations. The 1.25-inch hex size supports standard tooling for installation and maintenance.

SKU: 2220-12-12S

Supplier Part Number (MPN): 2220-12-12S

Specifications

Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Type 1 SAE ORB	End Type 2 SAE ORB	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 1.25	ICC Straight Adapters	Item Type SAE ORB Male / SAE ORB Male Straight Adapter	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 1.25	Sub Brand None	Supplier Part Number 2220-12-12S	Product Weight 0.40 lbs

Product Questions & Answers (1)

Question by: Hank W on Apr 2, 2026, 6:02 PM

Would this fitting hold up if I used it offshore on some hydraulic equipment?

Answer by: Customer Support on Apr 3, 2026, 7:39 PM

Built with Dura-Kote plating over carbon steel, this adapter is designed for corrosion resistance, making it suitable for offshore drilling applications.
