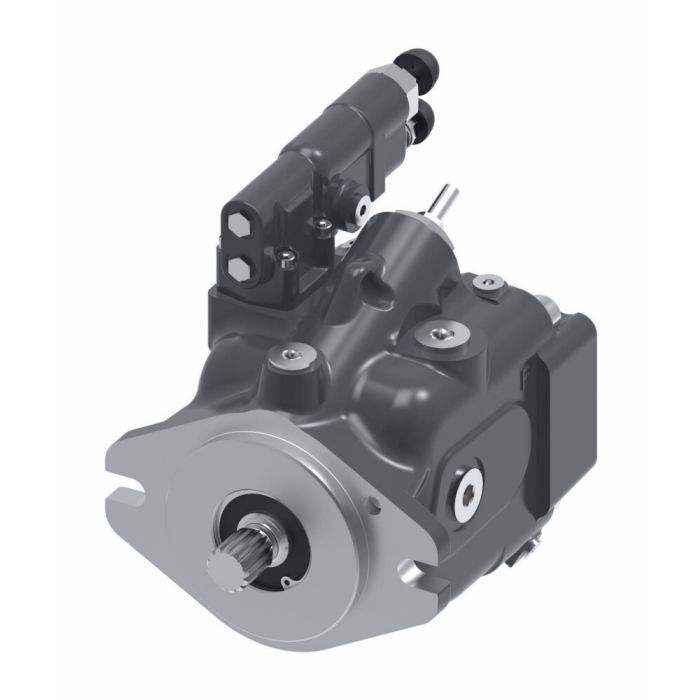

main product photo

AEC028L05AAA1AC200000000200100CD01B

Ask A Question

Description & Features

The Danfoss Power Solutions X20 Open Circuit Piston Pump, part of the 220 Series, is engineered for demanding applications such as construction, agriculture, and oil and gas. Featuring the fastest response and recovery times on the market, this reliable pump enhances performance in mobile environments like trucks and buses. Its high pressure and flow capacity make it ideal for challenging tasks requiring efficiency and durability.

Advanced control options in the AEC028L05AAA1AC200000000200100CD01B model ensure precise operation, increasing overall system efficiency. The pump's compact design, with a width of 6.85 inches, facilitates easy integration into various systems. This model is part of Danfoss/Eaton’s commitment to providing robust solutions for industrial use.

SKU: 222AK00025B

Supplier Part Number (MPN): 222AK00025B

Specifications

Brand
Danfoss
Control Type
Pressure Compensator
Design Code
B
Dimensions
9.68 in L x 6.85 in W x 9.02 in H
Drive Shaft Type
Keyed
Housing Color
Blue
Housing Material
Iron
Inlet Type
SAE O-ring
Mounting Type
2-Bolt Flanged
Outlet Type
SAE O-ring
Rotation Direction
Counterclockwise
Seal Material
Fluorocarbon
Series
220 Series

Product Questions & Answers (1)

Question by: Ralph R on Nov 7, 2025, 7:33 AM
pump's rated for construction and oil field work both? trying to figure out if one unit can pull double duty across a couple different machines we run
Answer by: Customer Support on Nov 8, 2025, 2:01 PM
Built around mobile industrial demands, the X20 220 Series handles construction equipment and oil and gas applications without being purpose-locked to one or the other. It's also rated for agriculture and truck and bus use, so running it across different machine types in a mixed fleet isn't outside what it was made for. High pressure and flow capacity are part of the core design, which is what makes it practical for heavy-duty cycles across those environments.
