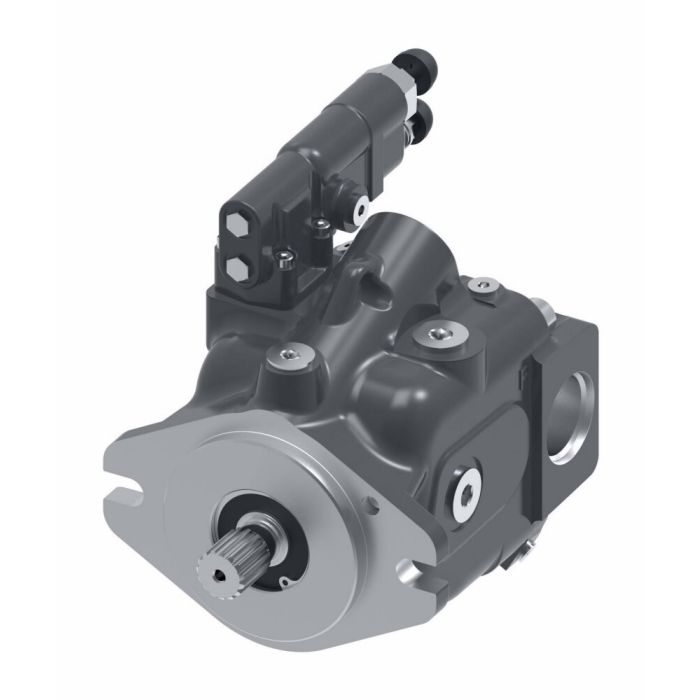

DANFOSS / EATON 220 SERIES MOBILE PISTON PUMP

Ask A Question

Description & Features

The Danfoss / Eaton 220 Series Mobile Piston Pump is designed for mobile applications, including construction, agriculture, truck and bus, and oil and gas.

Features include fastest response and recovery times, increased efficiency with advanced control options, and high pressure and flow capacity. This open circuit piston pump offers reliable performance in demanding environments.

SKU: 222AK00162B

Supplier Part Number (MPN): 222AK00162B

Specifications

Brand
Danfoss
Auxiliary Mount Output Shaft
No Auxiliary Mount
Control Type
Pressure/Flow Compensator
Design Code
2
Diagnostic Pressure Ports
0.4375-20 UNF-2B SAE O-ring Ports - Suction and Pressure - Plugged
Dimensions
9.68 in L x 6.85 in W x 9.02 in H
Drive Shaft Type
Straight Keyed
Front Mounting Input Shaft
SAE J744 101 2 2-Bolt B with 22.2.88 in Dia Straight Keyed Shaft
Housing Color
Blue
Inlet Type
SAE ORB
Main Ports Size Location
Rear Port, Suction: 1-5/8-12 UN-2B SAE O-ring, Pressure: 1-1/16-12 UN-2B SAE O-ring
Maximum Displacement Option
External Manual Stroke Adjustment (Set at Max]
Mounting Type
SAE B 2-Bolt Flange
Outlet Type
SAE ORB
Rotation Direction
Clockwise
Seal Material
Fluorocarbon
Series
220 Series

Product Questions & Answers (1)

Question by: Lance G on Jun 27, 2025, 3:03 PM
Can this pump handle the kinda pressures you see in oil and gas work?
Answer by: Customer Support on Jun 29, 2025, 6:21 AM
Yeah, this Danfoss / Eaton 220 series piston pump is definitely built for high pressure and flow capacity, which makes it suitable for demanding environments like those found in the oil and gas industry.
