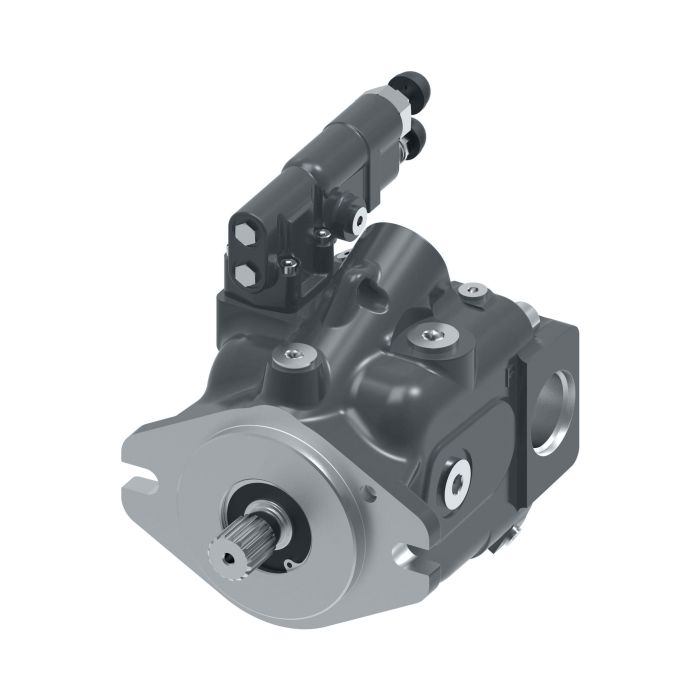

Danfoss / Eaton 220 Series Piston Pump

Ask A Question

Description & Features

Designed for demanding mobile applications, the Danfoss / Eaton 220 Series Piston Pump is an open circuit axial piston pump built for sectors including construction, agriculture, material handling, and truck and bus equipment. Its architecture supports high pressure and flow capacity, making it well suited to mobile hydraulic systems that require consistent performance under variable load conditions.

Advanced control options support efficiency across a range of operating conditions, while fast response and recovery times make this pump a strong fit for applications where cycle speed and system responsiveness are priorities. Distributed under the Danfoss Power Solutions brand, the 220 Series reflects the engineering standards associated with that product line in mobile open circuit hydraulics.

SKU: 222AK00228B

Supplier Part Number (MPN): 222AK00228B

Specifications

Brand
Danfoss
Control Type
Pressure/Flow Compensator
Dimensions
9.68 in L x 6.85 in W x 9.02 in H
Drive Shaft Type
Splined
Housing Color
Blue
Inlet Type
SAE ORB
Mounting Type
SAE B 2-Bolt Flange
Outlet Type
SAE ORB
Rotation Direction
Clockwise
Seal Material
Fluorocarbon
Series
220 Series

Product Questions & Answers (1)

Question by: Earl W on Jul 29, 2025, 8:03 AM
pump's rated for mobile use, but does it hold up on equipment that sees pretty heavy cycles day in and day out, like loaders or telehandlers running most of a shift?
Answer by: Customer Support on Jul 30, 2025, 7:29 PM
Open circuit axial piston pumps in this class are built for exactly that kind of workload. The 220 Series is specifically aimed at construction and material handling equipment, so repeated high-demand cycles are part of what it was engineered around. The high pressure and flow capacity it carries means it won't be working near its limits on typical loader or telehandler duty, which generally keeps wear in a reasonable range over time.
