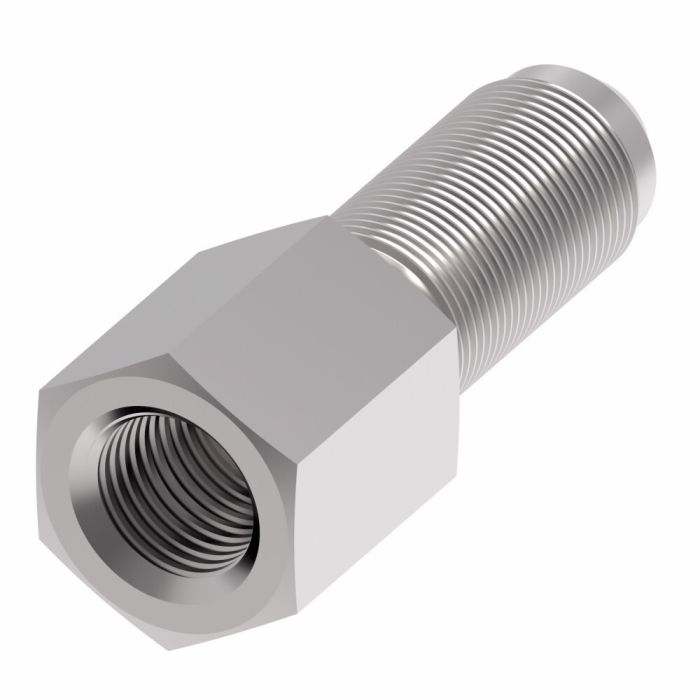

A straight adapter configuration in carbon steel, the Danfoss / Eaton 1 FP X 1 JIC BLKHD connects a 1-inch NPTF female end to a 1-inch SAE 37° male end, making it well suited for bulkhead installations in demanding hydraulic and fluid systems. Aeroquip's Dura-Kote plating provides strong corrosion resistance, extending service life in harsh or corrosive environments.
Rated for operating pressures above SAE standards and tested to a minimum working temperature of -40°F, this adapter is appropriate for use across marine, military, chemical processing, food and beverage, pulp and paper, and offshore drilling applications. Carbon steel construction and compliance with SAE, ASA, and ASME certifications support broad industrial compatibility. The 2239 Series offers hundreds of configuration styles, giving system designers flexibility when specifying connections.
SKU: 2239-16-16S
Supplier Part Number (MPN): 2239-16-16S
|
Alternate Part Numbers
MINO-00015F63243
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE|ASA|ASME
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 1
1
|
End Type 1
NPTF
|
End Type 2
SAE 37
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Straight Adapters
|
Item Type
NPTF Female / SAE 37° Male Straight Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Product Material
Carbon Steel
|
Product Width
1.63
|
Sub Brand
Aeroquip
|
Supplier Part Number
2239-16-16S
|
Product Weight
0.93 lbs
|
