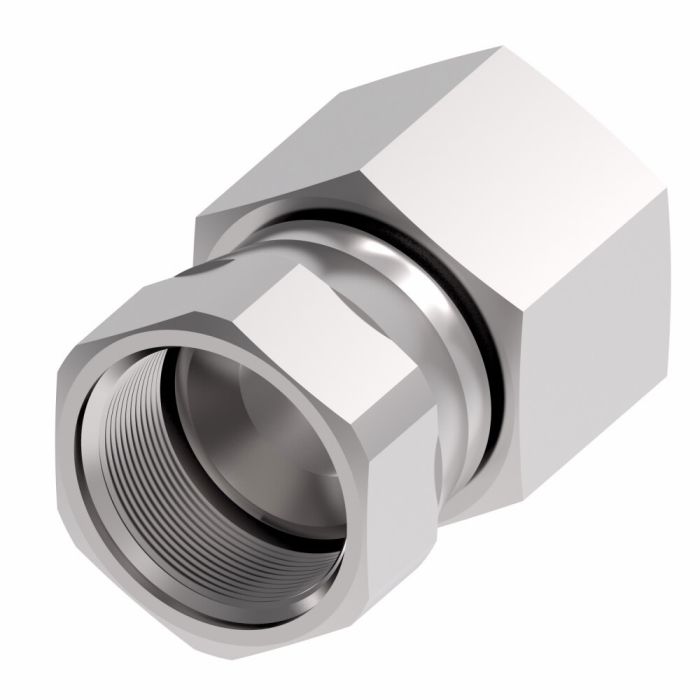

DANFOSS / EATON #4 FP SWIVEL X #6 FJIC

Description & Features

This carbon steel adapter features a #4 FP swivel on one end and a #6 FJIC on the other. The DANFOSS / EATON #4 FP SWIVEL X #6 FJIC is suitable for use in marine, military, chemical processing, pulp and paper, and food and beverage applications, as well as off-shore drilling.

This NPTF Female / SAE 37° Female straight adapter is plated with Dura-Kote for enhanced corrosion resistance. Design offers flexibility with hundreds of styles to choose from. Meets ASA, ASME, and SAE standards, with operating pressures above SAE standards. Minimum working temperature is -40.

SKU: 2242-4-6S

Supplier Part Number (MPN): 2242-4-6S

Specifications

Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, FNPT	Connection Type 1 Female SAE 37 deg JIC Flare Swivel	Connection Type 2 Female NPTF	Dimension Standards SAE 070603/J514	Dimensions 1.18 in L	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 11/16 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40	Series 2242 Series	Thread Size 1/4-18 x 9/16-18	Tube OD 3/8 in

Product Questions & Answers (1)

Question by: Rick C on Dec 23, 2025, 7:28 PM

Will this here adapter hold up okay in a marine environment?

Answer by: Customer Support on Dec 25, 2025, 11:25 AM

Dura-Kote plating on this carbon steel adapter is specifically included to give it enhanced corrosion resistance, which makes it suitable for marine applications.
