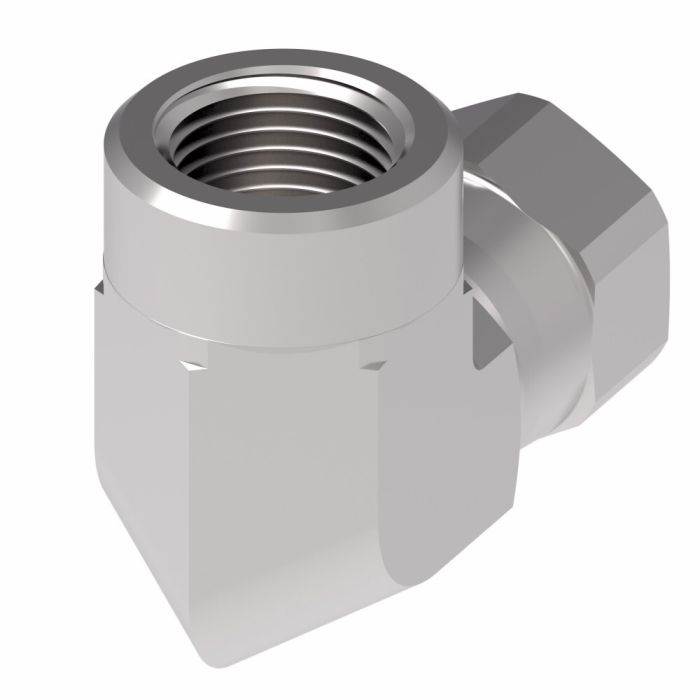

Designed for demanding industrial environments, the Danfoss / Eaton ADP 1/2 FP 10 F JIC is a 90° elbow adapter that connects 1/2" NPTF female threads to a 10 F SAE 37° female JIC swivel. Constructed from carbon steel with Dura-Kote plating, it delivers strong corrosion resistance suited to the rigorous conditions found in marine, military, offshore drilling, chemical processing, food and beverage processing, and pulp and paper applications.
The SAE 37° flare swivel end allows for rotational positioning during assembly, reducing stress on connected lines. Rated for operating pressures above standard SAE thresholds, this adapter is built to perform where conventional fittings may fall short. A 1" hex on the SAE end and a minimum working temperature of -65°F extend its usability across a wide range of service conditions.
SKU: 2244-8-10S
Supplier Part Number (MPN): 2244-8-10S
Alternate Part Numbers: C1EK13
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1EK13, Alternate Part Number MINO-00925X09701
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Drop Dimension
1.12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.50
End Size 2
0.88
End Type 1
NPTF
End Type 2
SAE 37
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Hex Size 2
1
ICC
Elbow Adapters
Item Type
NPTF Female/SAE 37° Female 90° Elbow Adapter
Language
English
Minimum Working Temperature
-65
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.06
Sub Brand
None
Supplier Part Number
2244-8-10S
Product Weight
0.59 lbs
Product Questions & Answers (1)
Question by: Danny H on Dec 6, 2025, 3:18 PM
What kind of pressures can this elbow adapter handle?
Answer by: Customer Support on Dec 7, 2025, 7:46 PM
It's rated for operating pressures above standard SAE thresholds, so it should hold up in demanding situations where other fittings might fail.
