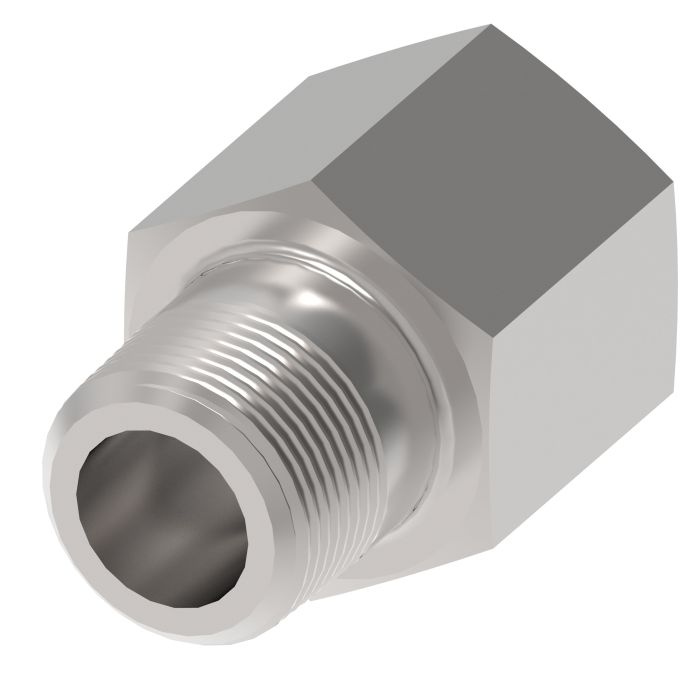

DANFOSS / EATON ADPT 1/8 MP 5 F JIC

Ask A Question

Description & Features

This carbon steel adapter from Danfoss / Eaton features a NPTF male end and a SAE ORB female end. This straight adapter is suitable for marine, military, chemical processing, pulp and paper, and food and beverage applications, as well as off-shore drilling. The DANFOSS / EATON ADPT 1/8 MP 5 F JIC features Dura-Kote plating for superior corrosion resistance and design flexibility with hundreds of styles to choose from, as well as higher operating pressures above SAE standards.

The NPTF (National Pipe Taper Fuel) end has a size of 1/8 inch, while the SAE ORB (Society of Automotive Engineers O-Ring Boss) end has a size of 1/2 inch. It is designed to withstand a minimum working temperature of -40 degrees Fahrenheit.

SKU: 2246-2-5S

Supplier Part Number (MPN): 2246-2-5S

Alternate Part Numbers: C1BD37

Specifications

Brand
Danfoss
Connection Size 1
1/8 in
Connection Size 2
1/2 in
Connection Type
Female SAE ORB, MNPT
Connection Type 1
Male NPTF
Connection Type 2
Female SAE ORB
Dimensions
1.09 in L x 0.75 in W x 0.75 in H
Finish
Dura-Kote™
Fitting Type
Adapter
For Use With
NPTF External Pipe and SAE O-ring Boss internal Connection
Hex Size
3/4 in
Material
Carbon Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
4000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Series
2246 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20 x 1/8-27

Product Questions & Answers (1)

Question by: Vince G on Dec 22, 2025, 5:17 PM
What size is the NPTF end on this fitting?
Answer by: Customer Support on Dec 24, 2025, 12:34 PM
The NPTF (National Pipe Taper Fuel) end is 1/8 inch.
