DANFOSS / EATON ADAPTER

Description & Features

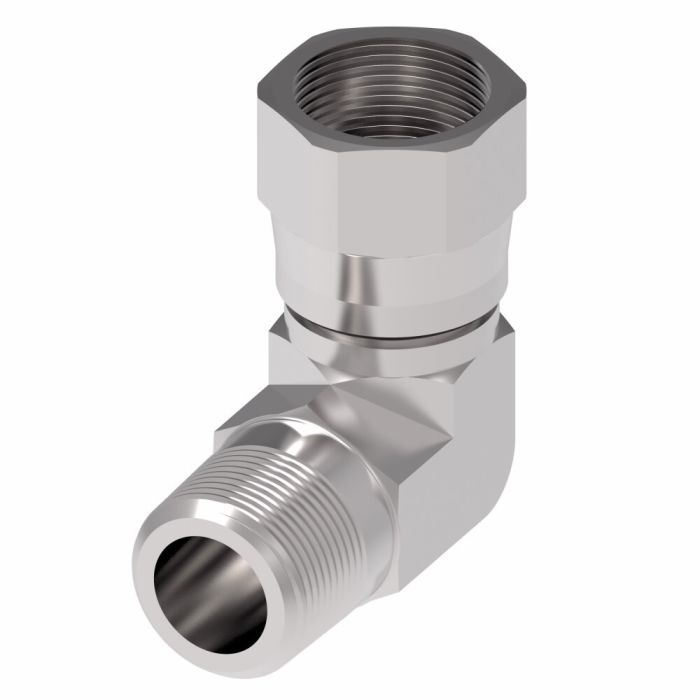

This DANFOSS / EATON ADAPTER is a carbon steel NPTF Male/SAE 37° Female 90° elbow adapter, designed for diverse applications including marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling. It meets SAE 071602 standards.

Featuring Dura-Kote plating, this adapter offers superior corrosion resistance and design flexibility. It is designed for higher operating pressures that exceed SAE standards. The End 1 size is 0.75, with a male gender and NPTF type, while End 2 is also 0.75 in size, but with a female gender and SAE 37° Flare Swivel. It has a minimum working temperature of -65 degrees.

SKU: 2250-12-8S

Supplier Part Number (MPN): 2250-12-8S

Alternate Part Numbers: C1DV79

Specifications

Connection Size 1 3/4 in	Connection Size 2 1/2 in	Connection Type Female JIC Swivel, MNPT	Connection Type 1 Female SAE 37 deg JIC Flare Swivel	Connection Type 2 Male NPTF	Dimension Standards SAE 071602/J514	Drop Dimensions 1.17 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Hex Size 7/8 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65	Segment Code C	Series 2250 Series	Thread Size 3/4-16 x 3/4-14	Tube OD 1/2 in

Product Questions & Answers (1)

Question by: Jimmy O on Oct 21, 2025, 6:45 AM

Will this adapter hold up in a marine environment?

Answer by: Customer Support on Oct 22, 2025, 3:39 PM

It's made with Dura-Kote plating, which gives it superior corrosion resistance, so it should do well in marine applications.
