DANFOSS / EATON 4350 AQUIP SWIVEL ADAPT

Description & Features

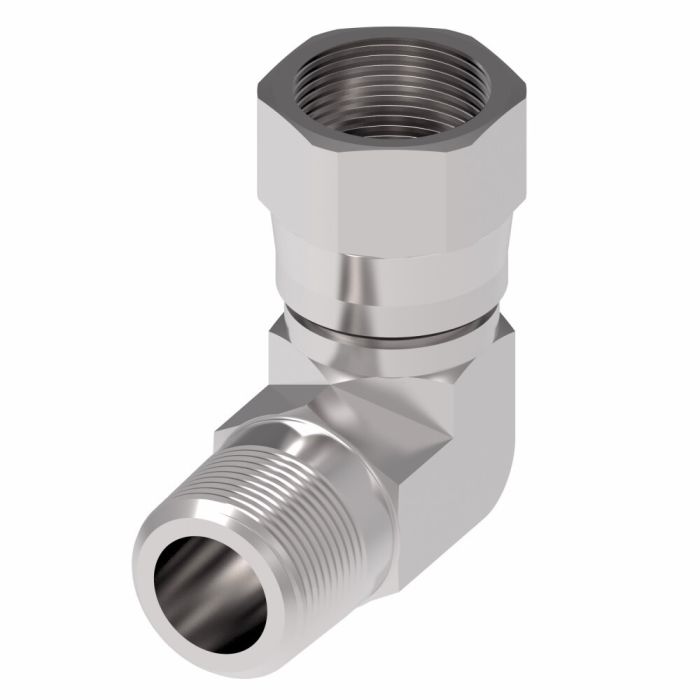

This Eaton 4350 Aquip swivel adapter is constructed of carbon steel with Dura-Kote plating for corrosion resistance. Design flexibility is provided by hundreds of styles to choose from. It can be used in marine, military, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling applications.

This NPTF Male/SAE 37° Female 90° Elbow Adapter meets SAE 071602 certifications and has a minimum working temperature of -65 degrees. End 1 is a 0.125 NPTF male, and End 2 is a 0.5 SAE 37 female.

SKU: 2250-2-5S

Supplier Part Number (MPN): 2250-2-5S

Specifications

Connection Size 1 1/8 in	Connection Size 2 5/16 in	Connection Type Female JIC Swivel, MNPT	Connection Type 1 Female SAE 37 deg JIC Flare Swivel	Connection Type 2 Male NPTF	Dimension Standards SAE 071602/J514	Drop Dimensions 0.68 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Hex Size 5/8 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65	Segment Code C	Series 2250 Series	Thread Size 1/2-20 x 1/8-27

Product Questions & Answers (1)

Question by: Todd W on Oct 11, 2025, 7:23 AM

What kind of stuff can this swivel adapter handle, application-wise?

Answer by: Customer Support on Oct 12, 2025, 9:51 AM

This Eaton adapter is good to go in marine, military, chemical processing, pulp and paper, food and beverage processing, and even off-shore drilling applications.
