CLS100LSR000220ZZ00B

Description & Features

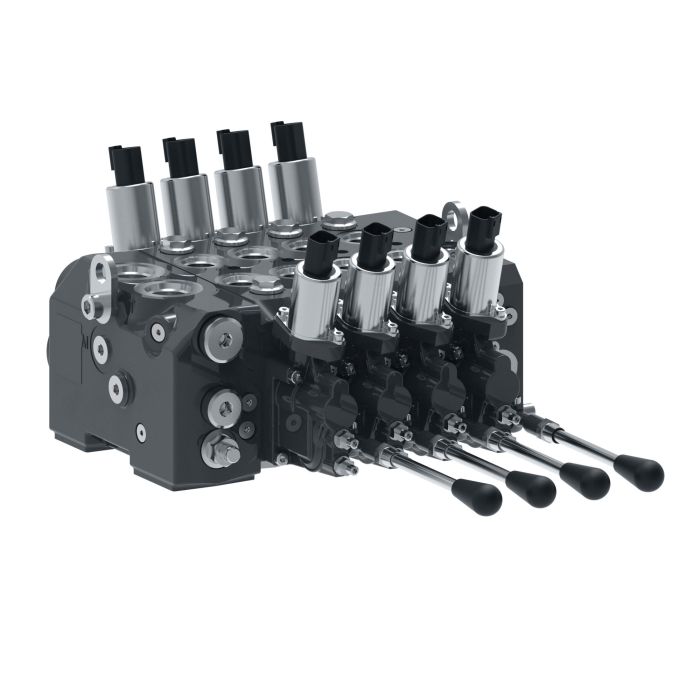

Designed for demanding mobile equipment applications, the CLS100LSR000220ZZ00B is a load sense sectional mobile valve from Danfoss/Eaton's Char-Lynn CLS series. Built in ductile iron with a mono-block construction, it is suited for use in excavators, forestry equipment, refuse trucks, forklifts, agricultural machinery, truck-mounted cranes, and marine applications.

A key characteristic of this valve is its ability to accommodate both pre- and post-compensated sections within the same assembly. This allows for flexible circuit design without requiring separate valve bodies, and the compact form factor keeps installation footprint minimal within the machine envelope.

With a product width of 2.48 inches, the CLS100LSR000220ZZ00B fits into tight installations where space is a practical constraint. Its load sense architecture supports responsive flow distribution across multiple actuators, making it well suited to multi-function mobile equipment.

SKU: 225AP00617B

Supplier Part Number (MPN): 225AP00617B

Specifications

Brand Danfoss	Body Material Iron	Connection Type SAE	Construction Mono-Block	Dimensions 11.31 in L x 2.48 in W x 4.84 in H	Language English	Nominal Size #06	Number of Ports/Ways 10-Port	Series CLS100 Series

Product Questions & Answers (1)

Question by: Melvin H on May 10, 2025, 10:27 AM

Is this valve mainly for bigger equipment like excavators and cranes?

Answer by: Customer Support on May 12, 2025, 8:49 AM

This Char-Lynn CLS valve is well-suited for mobile equipment. The product description specifically calls out excavators, truck-mounted cranes, forestry equipment, and even refuse trucks.
