#2 X #2 MJIC UNION

Description & Features

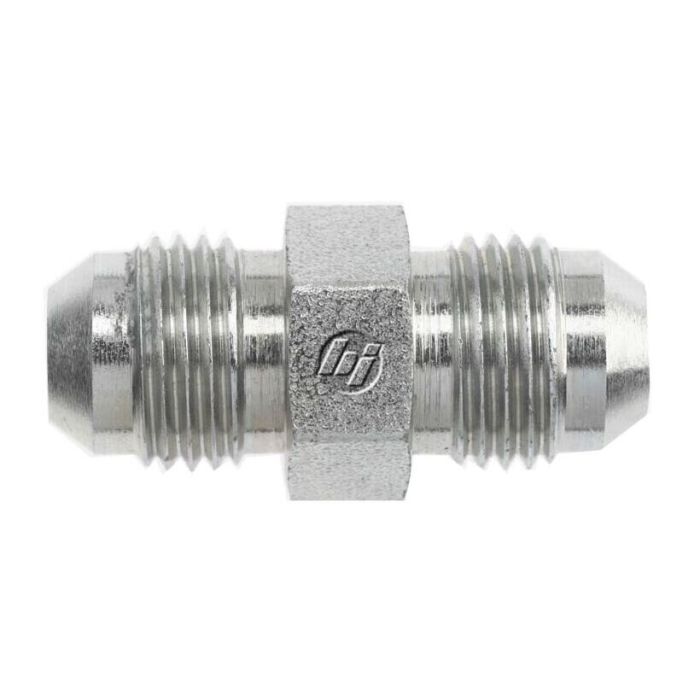

Designed for straight inline connections in hydraulic lines, the #2 X #2 MJIC Union is a steel fitting that joins two Male JIC SAE 37-degree flare ends of the same size. Both threaded ends conform to SAE J514 and measure 5/16-24, making this a symmetric union suited for #2 JIC tubing assemblies where a direct male-to-male connection is required.

Manufactured by Brennan Industries from straight steel construction, this fitting carries a maximum dynamic pressure rating of 7,500 PSI. With an overall length of 1.170 mm, it is compact enough for installations where space is a consideration. California residents should note that this product is subject to a Proposition 65 warning.

SKU: 2403-02-02

Supplier Part Number (MPN): 2403-02-02

Alternate Part Numbers: A2027-2-2S, C1BF49

Specifications

Brand BRENNAN	Connection Size 1 1/8 in	Connection Size 2 1/8 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 1.17 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 7/16 in	Material Steel	Material Construction 12L14/C1045 Steel	Series 2403 Series	Thread 2 Drill Dimensions 0.062 in	Thread B1 Drill Dimensions 0.062 in	Thread Size 5/16-24

Similar Products

Model Number	Connection Size 1	Connection Size 2	Material Construction	Thread Size	Hex Size
2403-03-02	3/16 in	1/8 in	12L14/C1045 Steel	5/16-24, 3/8-24	7/16 in
2403-03-03	3/16 in	3/16 in	12L14/C1045 Steel	3/8-24	7/16 in
2403-04-02	1/4 in	1/8 in	12L14/C1045 Steel	7/16-20 x 5/16-24	1/2 in
2403-04-03	1/4 in	3/16 in	12L14/C1045 Steel	7/16-20 x 3/8-24	1/2 in
2403-04-04	1/4 in	1/4 in	12L14/C1045 Steel	7/16-20	1/2 in
2403-05-04	5/16 in	1/4 in	12L14/C1045 Steel	1/2-20 x 7/16-20	0.563 in
2403-05-05	5/16 in	5/16 in	12L14/C1045 Steel	1/2-20	0.563 in
2403-06-04	3/8 in	1/4 in	12L14/C1045 Steel	9/16-18, 7/16-20	5/8 in
2403-06-05	3/8 in	5/16 in	12L14/C1045 Steel	9/16-18 x 1/2-20	5/8 in
2403-06-06	3/8 in	3/8 in	12L14/C1045 Steel	9/16-18	5/8 in
2403-08-04	1/2 in	1/4 in	12L14/C1045 Steel	3/4-16 x 7/16-20	0.81 in
2403-08-05	1/2 in	5/16 in	12L14/C1045 Steel	1/2-20 x 3/4-16	0.81 in
2403-08-06	1/2 in	3/8 in	12L14/C1045 Steel	3/4-16, 9/16-18	0.81 in
2403-08-08	1/2 in	1/2 in	12L14/C1045 Steel	3/4-16	0.81 in
2403-10-04 Steel Male JIC To JIC Adapter	5/8 in	1/4 in	AISI 12L14/C1045 Steel	7/8-14 x 7/16-20	0.94 in
2403-10-06	5/8 in	3/8 in	12L14/C1045 Steel	7/8-14 x 9/16-18	0.94 in
2403-10-08	5/8 in	1/2 in	12L14/C1045 Steel	7/8-14 x 3/4-16	0.94 in
2403-10-10	5/8 in	5/8 in	12L14/C1045 Steel	7/8-14	0.94 in
2403-12-04	3/4 in	1/4 in	12L14/C1045 Steel	1-1/16-12 x 7/16-20	1-1/8 in
2403-12-06 Steel Male JIC To JIC Adapter	3/4 in	3/8 in	AISI 12L14/C1045 Steel	1-1/16-12 x 9/16-18	1-1/8 in
2403-12-08	3/4 in	1/2 in	12L14/C1045 Steel	3/4-16 x 1-1/16-12	1-1/8 in
2403-12-10	3/4 in	5/8 in	12L14/C1045 Steel	7/8-14 x 1-1/16-12	1-1/8 in
2403-12-12	3/4 in	3/4 in	12L14/C1045 Steel	1-1/16-12	1-1/8 in
2403-14-12 Steel Male JIC To JIC Adapter	7/8 in	3/4 in	AISI 12L14/C1045 Steel	1-3/16-12 x 1-1/16-12	1-1/4
2403-14-14	7/8 in	7/8 in	12L14/C1045 Steel	1-3/16-12	1-1/4
2403-16-08	1 in	1/2 in	12L14/C1045 Steel	1-5/16-12, 3/4-16	1-3/8 in
2403-16-10	1 in	5/8 in	12L14/C1045 Steel	7/8-14 x 1-5/16-12	1-3/8 in
2403-16-12	1 in	3/4 in	12L14/C1045 Steel	1-5/16-12 x 1-1/16-12	1-3/8 in
2403-16-16	1 in	1 in	12L14/C1045 Steel	1-5/16-12	1-3/8 in
2403-20-12	1-1/4 in	3/4 in	12L14/C1045 Steel	1-5/8-12 x 1-1/16-12	1.688 in
2403-20-16	1-1/4 in	1 in	12L14/C1045 Steel	1-5/8-12 x 1-5/16-12	1.688 in
2403-20-20	1-1/4 in	1-1/4 in	12L14/C1045 Steel	1-5/8-12	1.688 in
2403-24-16	1-1/2 in	1 in	12L14/C1045 Steel	1-7/8-12 x 1-5/16-12	2 in
2403-24-20	1-1/2 in	1-1/4 in	12L14/C1045 Steel	1-7/8-12, 1-5/8-12	2 in
2403-24-24	1-1/2 in	1-1/2 in	12L14/C1045 Steel	1-7/8-12	2 in
2403-32-24	2 in	1-1/2 in	12L14/C1045 Steel	2-1/2-12 x 1-7/8-12	2-5/8 in
2403-32-32	2 in	2 in	12L14/C1045 Steel	2-1/2-12	2-5/8 in
2403-48-48	3 in	3 in	12L14/C1045 Steel	3-1/2-12

Product Questions & Answers (2)

Question by: Larry M on May 27, 2025, 9:23 AM

Got two male JIC ends that need joining up and ain't got a female coupler in the mix, this the right piece for that situation?

Answer by: Customer Support on May 29, 2025, 6:47 AM

That's what this union is built for. Both ends are 5/16-24 male JIC with a 37-degree flare, so it bridges two male fittings of the same size without needing a female connection in between. As long as you're working with #2 JIC tubing on both sides, this is your part.

Question by: Shawn R on Mar 22, 2026, 5:32 PM

got two #2 JIC hoses with 5/16-24 ends. is this the little union that’ll tie em together straight?

Answer by: Customer Support on Mar 24, 2026, 12:57 PM

For a straight inline hook-up, it joins two same-size Male JIC SAE 37 degree flare ends. Both sides are 5/16-24 threads and built to SAE J514, so it matches a #2 JIC male-to-male connection.
