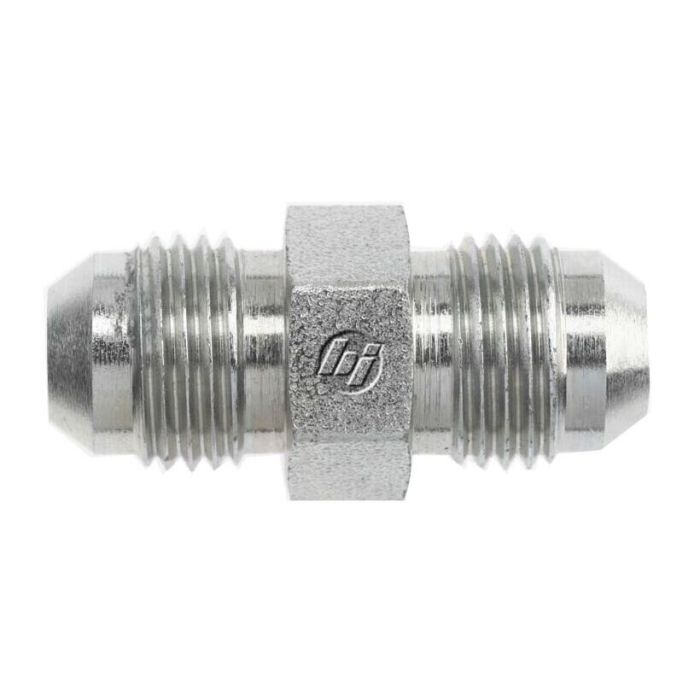

05MJ-05MJ STRAIGHT

Ask A Question

Description & Features

The 05MJ-05MJ Straight from Brennan Industries Inc offers a durable solution made from high-quality straight steel. It is designed to handle a maximum dynamic pressure of 6,000 Psi, making it suitable for applications requiring high pressure and reliability.

This adapter features Male JIC SAE 37 Degree Flare threads on both ends, adhering to SAE J514 specifications. Each end of the adapter has a thread size of 1/2-20 and a thread drill diameter of 0.234 mm. The overall length of 1.370 mm contributes to its compact design, ensuring it fits seamlessly into various setups.

Supplier Part Number: 2403-05-05

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
5/16 in
Connection Size 2
5/16 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1.37 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.563 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2403 Series
Thread 2 Drill Dimensions
0.234 in
Thread B1 Drill Dimensions
0.234 in
Thread Size
1/2-20

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Travis G on Nov 25, 2025, 1:32 PM
got a hose end with 1/2-20 JIC, will this straight adapter match up on both sides?
Answer by: Customer Support on Nov 27, 2025, 7:55 AM
Built as a straight Male JIC SAE 37 degree flare to Male JIC SAE 37 degree flare adapter, both ends are 1/2-20 threads and follow SAE J514.
Question by: Bobby E on Apr 14, 2025, 1:14 PM
Both ends are 1/2-20 male JIC on this thing, right? Trying to connect two female JIC fittings back to back and wanna make sure I got the right piece before I order.
Answer by: Customer Support on Apr 16, 2025, 11:45 AM
Correct on both counts. Each end carries a 1/2-20 Male JIC SAE 37 Degree Flare thread, so you're looking at a male-to-male straight union. If you've got two female JIC ports that need to be joined inline, this adapter is exactly what bridges them. Both ends conform to SAE J514, so thread geometry is consistent across the fitting.
Question by: Randy J on Mar 15, 2026, 5:21 PM
Reckon this would hold up okay for hooking up some hydraulic lines on my tractor? Gotta be able to take some pressure.
Answer by: Customer Support on Mar 17, 2026, 6:20 AM
This straight adapter is made from steel and can handle a maximum dynamic pressure of 6,000 PSI, so it should be suitable for many hydraulic applications.
