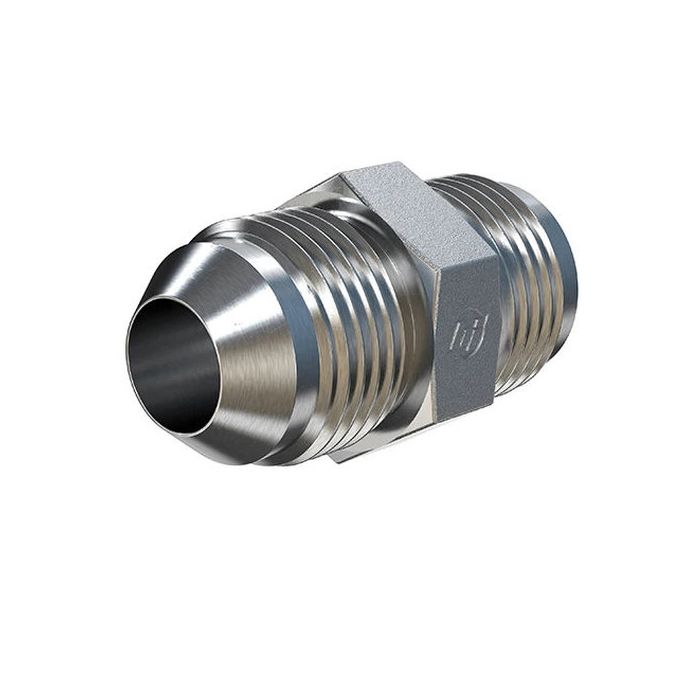

main product photo

SS STR #6 M-JIC X #M-JIC UNION

Ask A Question

Description & Features

This stainless steel union features #6 Male JIC SAE 37-degree flare connections on both ends. This SS STR #6 M-JIC X #M-JIC UNION is part of the 2403 series of Brennan Industries components.

This straight stainless steel union has a maximum dynamic pressure of 6,000 PSI. Each thread has a 9/16-18 size and SAE J514 specification.

SKU: 2403-06-06-SS

Supplier Part Number (MPN): 2403-06-06-SS

Alternate Part Numbers: AJ6U, SS-2403-06-06

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Cubic Inch Space L x W x H Dimensions
0.551 cu-in
Dimension Standards
SAE J514
Dimensions
1.41 in L
Fitting Type
Adapter
Hex Size
5/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
2403 Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread B2 Drill Dimensions
0.297 in
Thread Size
9/16-18

Product Questions & Answers (1)

Question by: Ricky R on Oct 6, 2025, 6:20 PM
Will this union hold up if I'm pushing 5500 PSI through it?
Answer by: Customer Support on Oct 8, 2025, 6:41 AM
Designed for dynamic pressures up to 6,000 PSI, this stainless steel union should handle your 5500 PSI application without issue.
