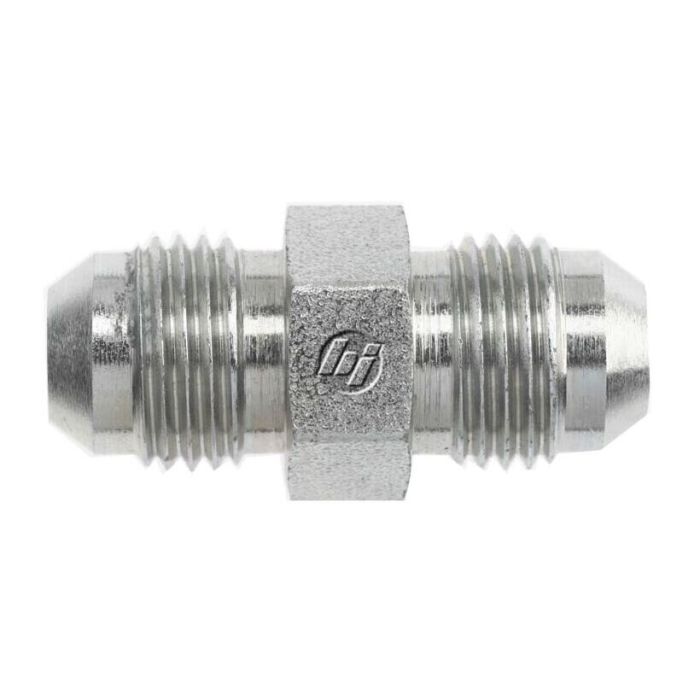

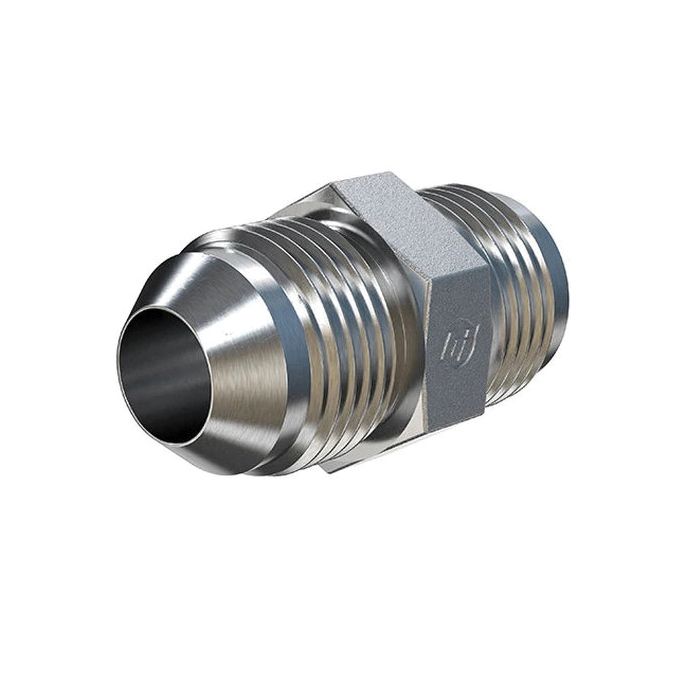

06MJ-06MJ STRAIGHT

Description & Features

Engineered by Brennan Industries Inc, the 06MJ-06MJ Straight adapter is designed to provide reliable connections in demanding environments. This component is crafted from high-quality straight steel, ensuring durability and performance.

The adapter features a male JIC SAE 37-degree flare thread type for both thread B1 and thread B2, with specifications meeting SAE J514 standards. Each thread has a drill measurement of 0.297 mm and a size of 9/16-18, making it suitable for a variety of industrial applications.

With an overall length of 1.410 mm, this adapter is built to withstand a maximum dynamic pressure of up to 6,000 psi. It is part of the Brennan Industries' 2403 series, designed for consistent, high-pressure use.

Supplier Part Number: 2403-06-06

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1.41 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
5/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2403 Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
9/16-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Material Construction Thread Size Hex Size Price Action
#2 X #2 MJIC UNION

2403-02-02

1/8 in

1/8 in

12L14/C1045 Steel

5/16-24

7/16 in

#3 X #2 MJIC UNION

2403-03-02

3/16 in

1/8 in

12L14/C1045 Steel

5/16-24, 3/8-24

7/16 in

#3 X #3 MJIC UNION

2403-03-03

3/16 in

3/16 in

12L14/C1045 Steel

3/8-24

7/16 in

#4 X #2 MJIC UNION

2403-04-02

1/4 in

1/8 in

12L14/C1045 Steel

7/16-20 x 5/16-24

1/2 in

#4 X #3 MJIC UNION

2403-04-03

1/4 in

3/16 in

12L14/C1045 Steel

7/16-20 x 3/8-24

1/2 in

04MJ-04MJ STRAIGHT

2403-04-04

1/4 in

1/4 in

12L14/C1045 Steel

7/16-20

1/2 in

#5 X #4 MJIC UNION

2403-05-04

5/16 in

1/4 in

12L14/C1045 Steel

1/2-20 x 7/16-20

0.563 in

05MJ-05MJ STRAIGHT

2403-05-05

5/16 in

5/16 in

12L14/C1045 Steel

1/2-20

0.563 in

06MJ-04MJ STRAIGHT

2403-06-04

3/8 in

1/4 in

12L14/C1045 Steel

9/16-18, 7/16-20

5/8 in

06MJ-05MJ STRAIGHT

2403-06-05

3/8 in

5/16 in

12L14/C1045 Steel

9/16-18 x 1/2-20

5/8 in

08MJ-04MJ STRAIGHT

2403-08-04

1/2 in

1/4 in

12L14/C1045 Steel

3/4-16 x 7/16-20

0.81 in

08MJ-05MJ STRAIGHT

2403-08-05

1/2 in

5/16 in

12L14/C1045 Steel

1/2-20 x 3/4-16

0.81 in

08MJ-06MJ STRAIGHT

2403-08-06

1/2 in

3/8 in

12L14/C1045 Steel

3/4-16, 9/16-18

0.81 in

08MJ-08MJ STRAIGHT

2403-08-08

1/2 in

1/2 in

12L14/C1045 Steel

3/4-16

0.81 in

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

2403-10-04 Steel Male JIC To JIC Adapter

5/8 in

1/4 in

AISI 12L14/C1045 Steel

7/8-14 x 7/16-20

0.94 in

10MJ-06MJ STRAIGHT

2403-10-06

5/8 in

3/8 in

12L14/C1045 Steel

7/8-14 x 9/16-18

0.94 in

10MJ-08MJ STRAIGHT

2403-10-08

5/8 in

1/2 in

12L14/C1045 Steel

7/8-14 x 3/4-16

0.94 in

10MJ-10MJ STRAIGHT

2403-10-10

5/8 in

5/8 in

12L14/C1045 Steel

7/8-14

0.94 in

12MJ-04MJ STRAIGHT

2403-12-04

3/4 in

1/4 in

12L14/C1045 Steel

1-1/16-12 x 7/16-20

1-1/8 in

Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

2403-12-06 Steel Male JIC To JIC Adapter

3/4 in

3/8 in

AISI 12L14/C1045 Steel

1-1/16-12 x 9/16-18

1-1/8 in

12MJ-08MJ STRAIGHT

2403-12-08

3/4 in

1/2 in

12L14/C1045 Steel

3/4-16 x 1-1/16-12

1-1/8 in

12MJ-10MJ STRAIGHT

2403-12-10

3/4 in

5/8 in

12L14/C1045 Steel

7/8-14 x 1-1/16-12

1-1/8 in

12MJ-12MJ STRAIGHT

2403-12-12

3/4 in

3/4 in

12L14/C1045 Steel

1-1/16-12

1-1/8 in

Steel Adapter, 1-3/16-12 Male JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, Straight

2403-14-12 Steel Male JIC To JIC Adapter

7/8 in

3/4 in

AISI 12L14/C1045 Steel

1-3/16-12 x 1-1/16-12

1-1/4

#14 X #14 MJIC UNION

2403-14-14

7/8 in

7/8 in

12L14/C1045 Steel

1-3/16-12

1-1/4

16MJ-08MJ STRAIGHT

2403-16-08

1 in

1/2 in

12L14/C1045 Steel

1-5/16-12, 3/4-16

1-3/8 in

#16 X #10 MJIC UNION

2403-16-10

1 in

5/8 in

12L14/C1045 Steel

7/8-14 x 1-5/16-12

1-3/8 in

#16 X #12 MJIC UNION

2403-16-12

1 in

3/4 in

12L14/C1045 Steel

1-5/16-12 x 1-1/16-12

1-3/8 in

16MJ-16MJ STRAIGHT

2403-16-16

1 in

1 in

12L14/C1045 Steel

1-5/16-12

1-3/8 in

#20 X #12 MJIC UNION

2403-20-12

1-1/4 in

3/4 in

12L14/C1045 Steel

1-5/8-12 x 1-1/16-12

1.688 in

#20 X #16 MJIC UNION

2403-20-16

1-1/4 in

1 in

12L14/C1045 Steel

1-5/8-12 x 1-5/16-12

1.688 in

20MJ-20MJ STRAIGHT

2403-20-20

1-1/4 in

1-1/4 in

12L14/C1045 Steel

1-5/8-12

1.688 in

#24 X #16 MJIC UNION

2403-24-16

1-1/2 in

1 in

12L14/C1045 Steel

1-7/8-12 x 1-5/16-12

2 in

24MJ-20MJ STRAIGHT

2403-24-20

1-1/2 in

1-1/4 in

12L14/C1045 Steel

1-7/8-12, 1-5/8-12

2 in

24MJ-24MJ STRAIGHT

2403-24-24

1-1/2 in

1-1/2 in

12L14/C1045 Steel

1-7/8-12

2 in

#32 X #24 MJIC UNION

2403-32-24

2 in

1-1/2 in

12L14/C1045 Steel

2-1/2-12 x 1-7/8-12

2-5/8 in

#32 X #32 MJIC UNION

2403-32-32

2 in

2 in

12L14/C1045 Steel

2-1/2-12

2-5/8 in

BRENNAN ADAPTER

2403-48-48

3 in

3 in

12L14/C1045 Steel

3-1/2-12

Product Questions & Answers (3)

Question by: Terry O on May 9, 2025, 8:33 PM
Just wanna make sure, both ends are the same size, right?
Answer by: Customer Support on May 11, 2025, 5:12 PM
That's correct. This is a straight adapter, meaning both ends share the same 9/16-18 size and male JIC SAE 37-degree flare thread type, as specified by SAE J514.
Question by: Ricky W on Jan 31, 2026, 9:11 AM
got a hose with 9/16-18 JIC ends, is this just a straight male-to-male coupler for that?
Answer by: Customer Support on Feb 1, 2026, 2:32 PM
For joining two JIC flare connections straight through, it uses male JIC SAE 37 degree flare threads on both ends, and both sides are 9/16-18 per SAE J514.
Question by: Patty W on Dec 20, 2025, 7:00 AM
Got a hydraulic line running 9/16-18 JIC fittings on both ends and need to union them together. This the right part for that?
Answer by: Customer Support on Dec 22, 2025, 6:57 AM
That's what this fitting is built for. Both ends are male JIC with a 37-degree flare and a 9/16-18 thread, so it'll bridge two female JIC connections on the same line. Just make sure both your hose ends or port connections are female JIC to match up correctly.
