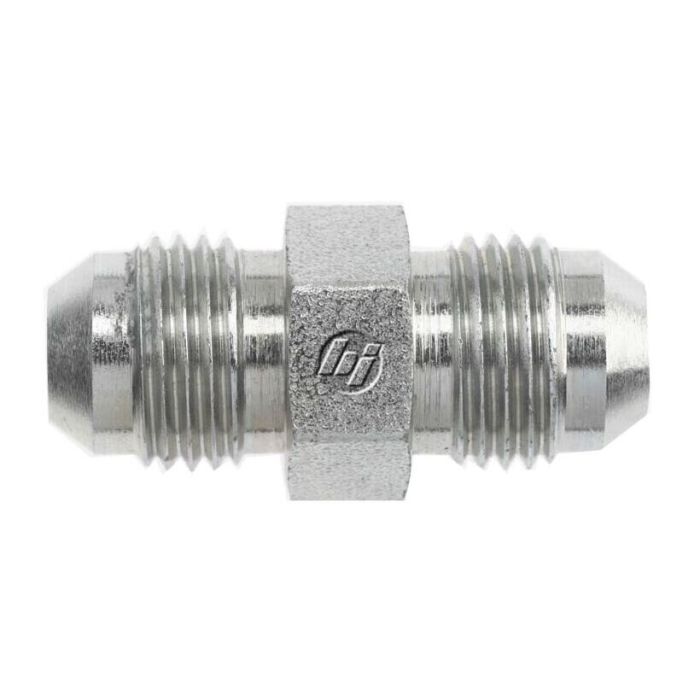

08MJ-08MJ STRAIGHT

Description & Features

Ideal for high-pressure industrial applications, the Brennan Industries 08MJ-08MJ STRAIGHT adapter is engineered for reliability and durability. Crafted from robust straight steel, it withstands a maximum dynamic pressure of 6,000 Psi, making it suitable for demanding environments. The adapter features dual male JIC SAE 37-degree flare fittings, conforming to the SAE J514 standards, ensuring seamless integration with compatible systems.

With a compact overall length of 1.620 mm, this adapter offers efficient space utilization without compromising strength. Both thread connections, B1 and B2, are standard sizes of 3/4-16, facilitating easy replacement and matching with existing parts. The precision-engineered design includes B1 and B2 drill dimensions of 0.391 mm, ensuring secure, leak-proof connections. Trust in this adapter to meet stringent industrial standards and provide reliable performance in high-pressure use.

SKU: 2403-08-08

Supplier Part Number (MPN): 2403-08-08

Alternate Part Numbers: 2403-8-8, A2027-8-8S

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.81 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2403 Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16

Similar Products

Model Number Connection Size 1 Connection Size 2 Material Construction Thread Size Hex Size Price Action
#2 X #2 MJIC UNION

2403-02-02

1/8 in

1/8 in

12L14/C1045 Steel

5/16-24

7/16 in

#3 X #2 MJIC UNION

2403-03-02

3/16 in

1/8 in

12L14/C1045 Steel

5/16-24, 3/8-24

7/16 in

#3 X #3 MJIC UNION

2403-03-03

3/16 in

3/16 in

12L14/C1045 Steel

3/8-24

7/16 in

#4 X #2 MJIC UNION

2403-04-02

1/4 in

1/8 in

12L14/C1045 Steel

7/16-20 x 5/16-24

1/2 in

#4 X #3 MJIC UNION

2403-04-03

1/4 in

3/16 in

12L14/C1045 Steel

7/16-20 x 3/8-24

1/2 in

04MJ-04MJ STRAIGHT

2403-04-04

1/4 in

1/4 in

12L14/C1045 Steel

7/16-20

1/2 in

#5 X #4 MJIC UNION

2403-05-04

5/16 in

1/4 in

12L14/C1045 Steel

1/2-20 x 7/16-20

0.563 in

05MJ-05MJ STRAIGHT

2403-05-05

5/16 in

5/16 in

12L14/C1045 Steel

1/2-20

0.563 in

06MJ-04MJ STRAIGHT

2403-06-04

3/8 in

1/4 in

12L14/C1045 Steel

9/16-18, 7/16-20

5/8 in

06MJ-05MJ STRAIGHT

2403-06-05

3/8 in

5/16 in

12L14/C1045 Steel

9/16-18 x 1/2-20

5/8 in

06MJ-06MJ STRAIGHT

2403-06-06

3/8 in

3/8 in

12L14/C1045 Steel

9/16-18

5/8 in

08MJ-04MJ STRAIGHT

2403-08-04

1/2 in

1/4 in

12L14/C1045 Steel

3/4-16 x 7/16-20

0.81 in

08MJ-05MJ STRAIGHT

2403-08-05

1/2 in

5/16 in

12L14/C1045 Steel

1/2-20 x 3/4-16

0.81 in

08MJ-06MJ STRAIGHT

2403-08-06

1/2 in

3/8 in

12L14/C1045 Steel

3/4-16, 9/16-18

0.81 in

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

2403-10-04 Steel Male JIC To JIC Adapter

5/8 in

1/4 in

AISI 12L14/C1045 Steel

7/8-14 x 7/16-20

0.94 in

10MJ-06MJ STRAIGHT

2403-10-06

5/8 in

3/8 in

12L14/C1045 Steel

7/8-14 x 9/16-18

0.94 in

10MJ-08MJ STRAIGHT

2403-10-08

5/8 in

1/2 in

12L14/C1045 Steel

7/8-14 x 3/4-16

0.94 in

10MJ-10MJ STRAIGHT

2403-10-10

5/8 in

5/8 in

12L14/C1045 Steel

7/8-14

0.94 in

12MJ-04MJ STRAIGHT

2403-12-04

3/4 in

1/4 in

12L14/C1045 Steel

1-1/16-12 x 7/16-20

1-1/8 in

Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

2403-12-06 Steel Male JIC To JIC Adapter

3/4 in

3/8 in

AISI 12L14/C1045 Steel

1-1/16-12 x 9/16-18

1-1/8 in

12MJ-08MJ STRAIGHT

2403-12-08

3/4 in

1/2 in

12L14/C1045 Steel

3/4-16 x 1-1/16-12

1-1/8 in

12MJ-10MJ STRAIGHT

2403-12-10

3/4 in

5/8 in

12L14/C1045 Steel

7/8-14 x 1-1/16-12

1-1/8 in

12MJ-12MJ STRAIGHT

2403-12-12

3/4 in

3/4 in

12L14/C1045 Steel

1-1/16-12

1-1/8 in

Steel Adapter, 1-3/16-12 Male JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, Straight

2403-14-12 Steel Male JIC To JIC Adapter

7/8 in

3/4 in

AISI 12L14/C1045 Steel

1-3/16-12 x 1-1/16-12

1-1/4

#14 X #14 MJIC UNION

2403-14-14

7/8 in

7/8 in

12L14/C1045 Steel

1-3/16-12

1-1/4

16MJ-08MJ STRAIGHT

2403-16-08

1 in

1/2 in

12L14/C1045 Steel

1-5/16-12, 3/4-16

1-3/8 in

#16 X #10 MJIC UNION

2403-16-10

1 in

5/8 in

12L14/C1045 Steel

7/8-14 x 1-5/16-12

1-3/8 in

#16 X #12 MJIC UNION

2403-16-12

1 in

3/4 in

12L14/C1045 Steel

1-5/16-12 x 1-1/16-12

1-3/8 in

16MJ-16MJ STRAIGHT

2403-16-16

1 in

1 in

12L14/C1045 Steel

1-5/16-12

1-3/8 in

#20 X #12 MJIC UNION

2403-20-12

1-1/4 in

3/4 in

12L14/C1045 Steel

1-5/8-12 x 1-1/16-12

1.688 in

#20 X #16 MJIC UNION

2403-20-16

1-1/4 in

1 in

12L14/C1045 Steel

1-5/8-12 x 1-5/16-12

1.688 in

20MJ-20MJ STRAIGHT

2403-20-20

1-1/4 in

1-1/4 in

12L14/C1045 Steel

1-5/8-12

1.688 in

#24 X #16 MJIC UNION

2403-24-16

1-1/2 in

1 in

12L14/C1045 Steel

1-7/8-12 x 1-5/16-12

2 in

24MJ-20MJ STRAIGHT

2403-24-20

1-1/2 in

1-1/4 in

12L14/C1045 Steel

1-7/8-12, 1-5/8-12

2 in

24MJ-24MJ STRAIGHT

2403-24-24

1-1/2 in

1-1/2 in

12L14/C1045 Steel

1-7/8-12

2 in

#32 X #24 MJIC UNION

2403-32-24

2 in

1-1/2 in

12L14/C1045 Steel

2-1/2-12 x 1-7/8-12

2-5/8 in

#32 X #32 MJIC UNION

2403-32-32

2 in

2 in

12L14/C1045 Steel

2-1/2-12

2-5/8 in

BRENNAN ADAPTER

2403-48-48

3 in

3 in

12L14/C1045 Steel

3-1/2-12

Product Questions & Answers (2)

Question by: Shawn P on Feb 14, 2026, 4:43 PM
got a couple female JIC fittings on both ends of a hydraulic line and need a male-to-male straight adapter to connect them, this a 3/4-16 on both sides?
Answer by: Customer Support on Feb 15, 2026, 7:03 PM
Both ends are 3/4-16 male JIC with a SAE 37-degree flare, so yeah, that'll mate up to female JIC fittings on both sides. Same thread size and spec on each end, which makes it real straightforward for that kind of union connection. It follows SAE J514, so it'll play nice with standard JIC hydraulic connections throughout.
Question by: Ralph L on Mar 30, 2026, 9:22 AM
What's the pressure rating on this thing?
Answer by: Customer Support on Mar 31, 2026, 10:30 AM
This straight adapter is rated for a maximum dynamic pressure of 6,000 Psi, so it should handle pretty tough applications.
