#10X#8 MALE UNION STAINLESS STEEL

Description & Features

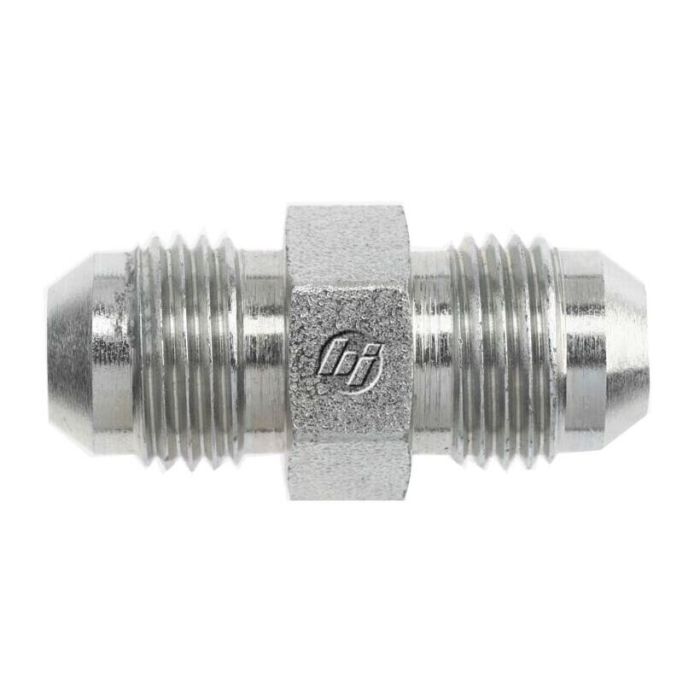

Constructed from stainless steel, the #10X#8 Male Union Stainless Steel fitting provides a straight, reducer-style union connection between #10 and #8 JIC male threads. Both ends conform to the SAE 37-degree flare standard (SAE J514), with the larger end at 7/8-14 UNF and the reduced end at 3/4-16 UNF. This configuration makes it well suited for hydraulic line assemblies where tube sizes transition within the same run.

Rated to 5,000 PSI maximum dynamic pressure, this fitting from Brennan Industries handles demanding hydraulic service without the corrosion vulnerability of carbon steel. The stainless steel construction is particularly appropriate for environments involving moisture exposure, aggressive fluids, or wash-down conditions. Overall length is 1.780 inches, keeping the connection compact within tight routing layouts.

SKU: 2403-10-08-SS

Supplier Part Number (MPN): 2403-10-08-SS

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Cubic Inch Space L x W x H Dimensions
1.563 cu-in
Dimension Standards
SAE J514
Dimensions
1.78 in L
Fitting Type
Adapter
Hex Size
0.94 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
2403 Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.484 in
Thread B2 Drill Dimensions
0.391 in
Thread Size
7/8-14 x 3/4-16

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
SS STR #4 MJIC X #4 M-JIC UNION

2403-04-04-SS

1/4 in

1/4 in

7/16-20

1/2 in

05MJ-05MJ STRAIGHT STNLS

2403-05-05-SS

5/16 in

5/16 in

1/2-20

0.563 in

BRENNAN 06MJ-04-MJ STRAIGHT STNLS

2403-06-04-SS

3/8 in

1/4 in

9/16-18, 7/16-20

5/8 in

SS STR #6 M-JIC X #M-JIC UNION

2403-06-06-SS

3/8 in

3/8 in

9/16-18

5/8 in

08MJ-06MJ Straight Stnls

2403-08-06-SS

1/2 in

3/8 in

3/4-16, 9/16-18

0.81 in

ADAPTER 08MJ-08MJ STRAIGHT STNLS

2403-08-08-SS

1/2 in

1/2 in

3/4-16

0.81 in

ss union

2403-10-06-SS

5/8 in

3/8 in

7/8-14 x 9/16-18

0.94 in

10MJ-10MJ STRAIGHT STNLS

2403-10-10-SS

5/8 in

5/8 in

7/8-14

0.94 in

BRENNAN ADAPTER SS

2403-12-08-SS

3/4 in

1/2 in

3/4-16 x 1-1/16-12

1-1/8 in

BRENNAN ADAPTER

2403-12-10-SS

3/4 in

5/8 in

7/8-14 x 1-1/16-12

1-1/8 in

12MJ-12MJ STRAIGHT STNLS

2403-12-12-SS

3/4 in

3/4 in

1-1/16-12

1-1/8 in

16MJ-10MJ-STRAIGHT SS

2403-16-10-SS

1 in

5/8 in

7/8-14 x 1-5/16-12

1-3/8 in

16MJ-16MJ Straight Stnls

2403-16-16-SS

1 in

1 in

1-5/16-12

1-3/8 in

20MJ-20MJ STRAIGHT STNLS

2403-20-20-SS

1-1/4 in

1-1/4 in

1-5/8-12

1.688 in

24MJ-24MJ STRAIGHT STNLS

2403-24-24-SS

1-1/2 in

1-1/2 in

1-7/8-12

2 in

Product Questions & Answers (1)

Question by: Dwayne B on Dec 19, 2025, 5:00 PM
So this fitting goes from a #10 to a #8 JIC male thread, right? Just want to make sure I'm understanding correctly.
Answer by: Customer Support on Dec 21, 2025, 6:27 AM
That's correct. This fitting provides a straight, reducer-style union connection between those two sizes, making it suitable for hydraulic line assemblies where you have that transition.
