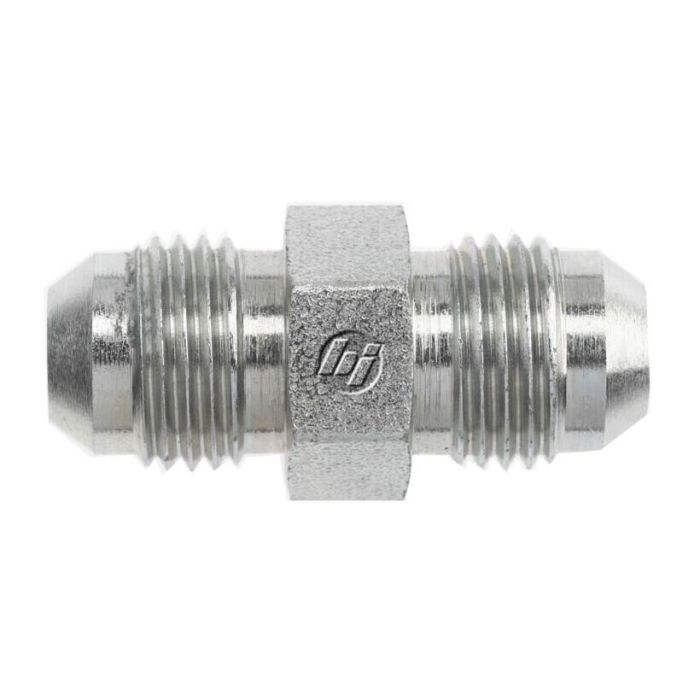

main product photo

#32 X #24 MJIC UNION

Ask A Question

Description & Features

This #32 x #24 MJIC Union features male JIC 37-degree flare connections on both ends, adhering to SAE J514 specifications.

Constructed from straight steel, the union is part of the 2403 series and has a maximum dynamic pressure of 2,000 PSI. Thread B1 size is 2-1/2-12 with a drill size of 1.781 mm, while Thread B2 is 1-7/8-12 with a drill size of 1.312 mm.

SKU: 2403-32-24

Supplier Part Number (MPN): 2403-32-24

Specifications

Connection Size 1
2 in
Connection Size 2
1-1/2 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Cubic Inch Space L x W x H Dimensions
21.705 cu-in
Dimension Standards
SAE J514
Dimensions
3.15 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-5/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
2403 Series
Thread 2 Drill Dimensions
1.312 in
Thread B1 Drill Dimensions
1.781 in
Thread Size
2-1/2-12 x 1-7/8-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Neal W on Aug 27, 2025, 6:57 PM
What's the highest pressure this fitting can handle?
Answer by: Customer Support on Aug 29, 2025, 8:59 AM
This union is rated for a maximum dynamic pressure of 2,000 PSI.
