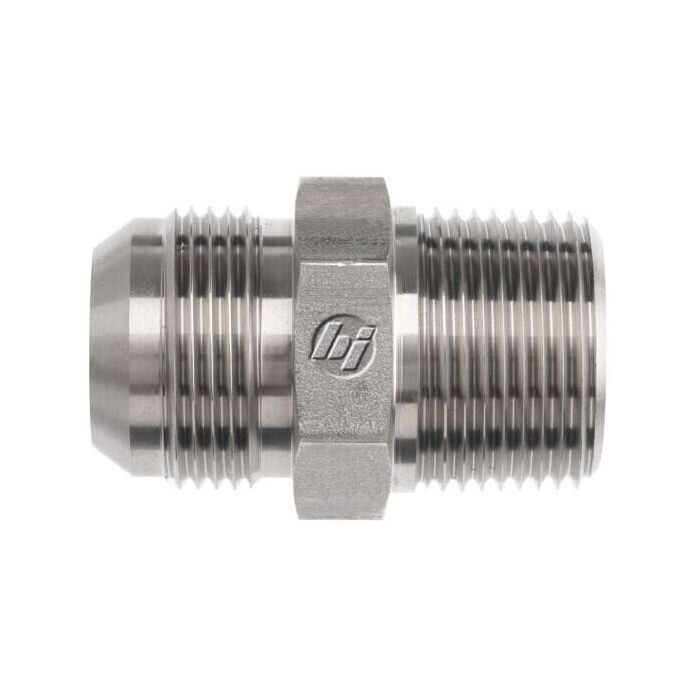

main product photo

05MJ-06MP STRAIGHT

Ask A Question

Description & Features

The 05MJ-06MP Straight from Brennan Industries Inc is a robust adapter designed for high-pressure applications. Featuring a maximum dynamic pressure of 6,000 Psi, this adapter ensures reliable performance under demanding conditions.

Constructed from straight steel, it provides durability and longevity. The male JIC SAE 37-degree flare (1/2-20) and male NPTF (3/8-18) threads adhere to SAE J514 and SAE J476 specifications, respectively, offering compatibility with numerous industrial standards.

The overall length of 1.420 mm and precise thread specifications make it an optimal choice for various hydraulic and mechanical systems.

Supplier Part Number: 2404-05-06

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
5/16 in
Connection Size 2
3/8 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J514, SAE J476
Dimensions
1.42 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.81 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2404 Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.234 in
Thread B2 Drill Dimensions
0.406 in
Thread Size
1/2-20 x 3/8-18

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Jimmy R on Jan 30, 2026, 2:17 PM
Got a 3/8 NPTF port on a manifold block and need to run a JIC line off it, will this adapter cover that transition straight up?
Answer by: Customer Support on Feb 1, 2026, 6:41 AM
That's the kind of connection this part handles. One end is a 3/8-18 male NPTF, which threads into your manifold port, and the other end is a 1/2-20 male JIC SAE 37-degree flare for your hose or tube fitting. Both threads meet their respective SAE specs, J476 for the NPTF side and J514 for the JIC side, so you're working within standard tolerances on both ends.
Question by: Warren H on Jul 12, 2025, 9:38 PM
trying to hook a 1/2-20 JIC line into a 3/8-18 NPTF port, is that what this adapter is for?
Answer by: Customer Support on Jul 14, 2025, 6:48 AM
For that exact mix of threads, yes. One end is male JIC SAE 37 degree flare with a 1/2-20 thread (SAE J514), and the other end is male NPTF with a 3/8-18 thread (SAE J476), so it’s meant to bridge those two connection types in a straight adapter.
