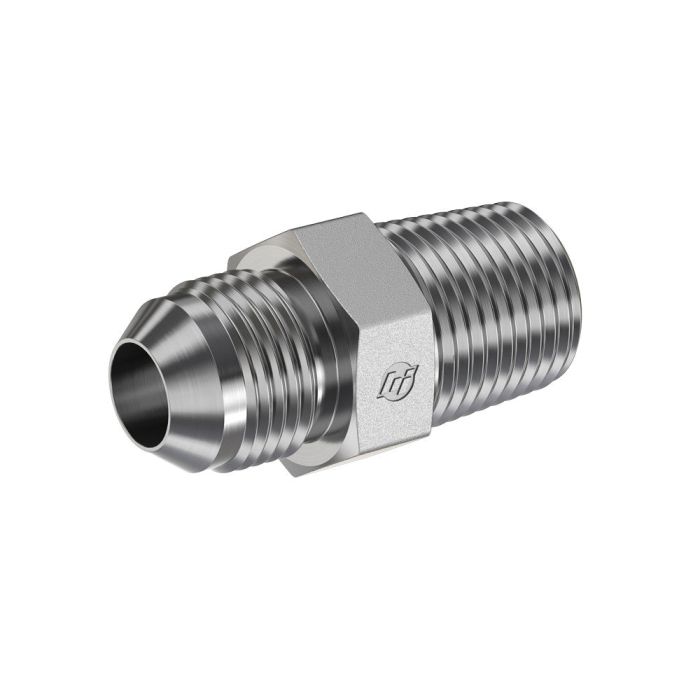

main product photo

ORFICE SS FITTING

Ask A Question

Description & Features

This stainless steel fitting features a restricted orifice, designed for precise flow control in hydraulic systems. The straight configuration ensures a direct connection between components. With a maximum dynamic pressure of 6,000 PSI, this ORFICE SS FITTING is suitable for demanding applications.

It features a 9/16-18 male JIC SAE 37-degree flare thread and a 1/4-18 male NPTF thread, manufactured to SAE J514 and SAE J476 specifications, respectively. The restricted orifice measures 0.125 inches.

SKU: 2404-06-04-SS-R.125

Supplier Part Number (MPN): 2404-06-04-SS-R.125

Specifications

Brand
BRENNAN
Additional Information
1/8 in Orifice
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Dimension Standards
SAE J514, SAE J476
Dimensions
1.43 in L
Fitting Type
Adapter
Hex Size
5/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
2404 Series
Thread B1 Drill Dimensions
0.297 in
Thread B2 Drill Dimensions
1/8 in
Thread Size
1/4-18 x 9/16-18

Product Questions & Answers (1)

Question by: Gary P on Feb 12, 2026, 7:54 AM
Will this fitting hold up if I'm pushin' it to 5500 PSI on the regular? Gotta make sure it can handle the pressure.
Answer by: Customer Support on Feb 13, 2026, 11:44 AM
This stainless steel fitting is rated for a maximum dynamic pressure of 6,000 PSI, so it should be suitable for applications up to 5500 PSI.
