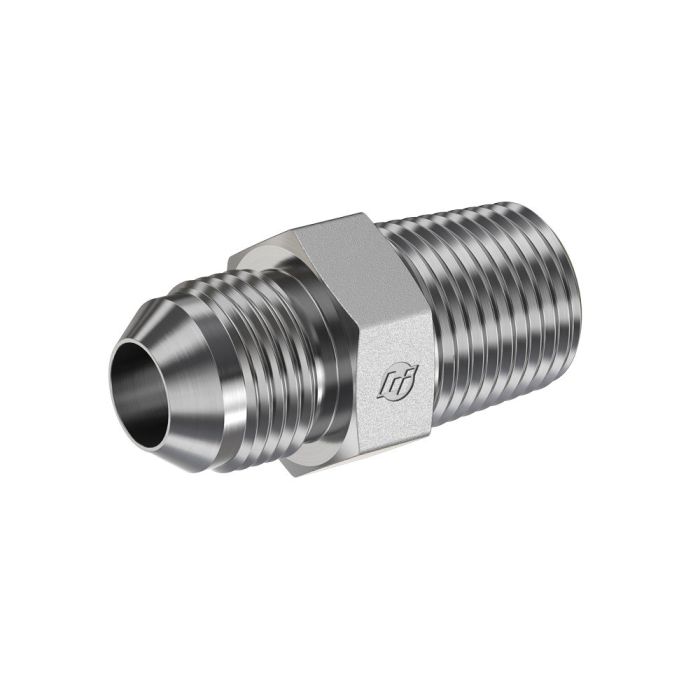

main product photo

06MJ-04MP STRAIGHT STNLS

Ask A Question

Description & Features

This straight stainless steel fitting features a 9/16-18 male JIC 37-degree flare on one end, conforming to SAE J514 standards. The opposite end features a 1/4-18 male NPTF thread, manufactured to SAE J476 specifications. The 06MJ-04MP STRAIGHT STNLS fitting is suitable for applications with a maximum dynamic pressure of 6,000 PSI.

SKU: 2404-06-04-SS

Alternate Part Numbers: SS-2404-06-04

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
0.559 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.43 in L
Fitting Type
Adapter
Hex Size
5/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
2404 Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
1/4-18 x 9/16-18

Product Questions & Answers (1)

Question by: Bobby G on Nov 18, 2025, 10:56 AM
Hey, will this fitting hold up to a 6000 PSI hydraulic system?
Answer by: Customer Support on Nov 19, 2025, 5:29 PM
Yes, sir. This straight stainless steel fitting is rated for a maximum dynamic pressure of 6,000 PSI, so it should be a good fit for your system as long as everything else is up to snuff.
