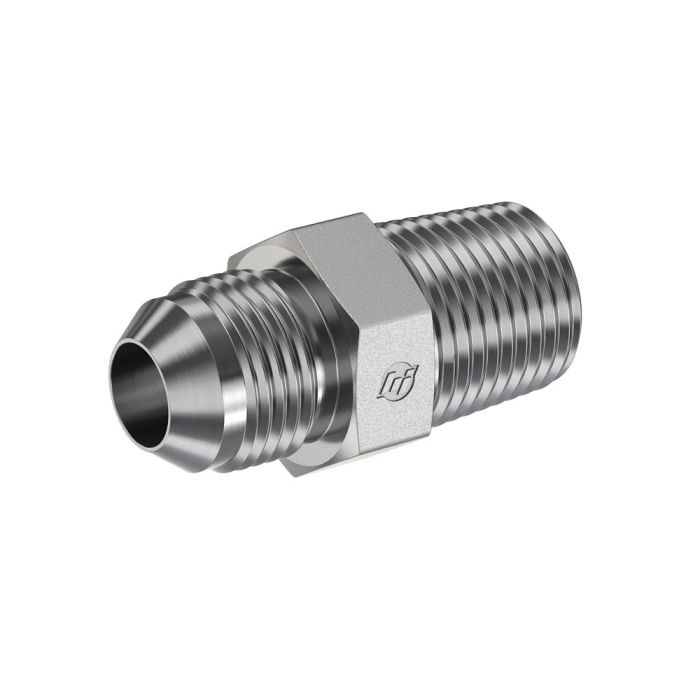

main product photo

06MJ-06MP STRAIGHT

Ask A Question

Description & Features

The 06MJ-06MP Straight adapter from Brennan Industries Inc is engineered for durability and compatibility in high-pressure environments. Crafted from straight steel, this adapter withstands a maximum dynamic pressure of 6,000 psi, ensuring reliability in demanding applications.

The adapter features a male JIC SAE 37-degree flare fitting on one end (9/16-18, SAE J514) and a male NPTF fitting on the other end (3/8-18, SAE J476). With an overall length of 1.430 mm and a thread drill measurement of 0.297 mm for both ends, it guarantees precise connections and effective performance in industrial settings.

This versatile adapter, part of the 2404 series, is suitable for use in various industrial systems where high pressure and robust connection are essential. Its compatibility with SAE standards ensures it meets industry requirements.

Supplier Part Number: 2404-06-06

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J514, SAE J476
Dimensions
1.43 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.81 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2404 Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread B2 Drill Dimensions
0.297 in
Thread Size
3/8-18, 9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Harvey W on May 5, 2025, 10:41 AM
got a fitting on a hydraulic line that's got a 3/8 NPTF port on one end and needs to connect to a JIC flare line, this the right piece for that?
Answer by: Customer Support on May 7, 2025, 6:58 AM
Yeah, that's exactly what this adapter is built for. One end is a 3/8-18 male NPTF, the other is a 9/16-18 male JIC SAE 37-degree flare. So if your port is female NPTF and your hose end is female JIC, this bridges those two thread types in a straight configuration with no elbow or offset involved.
