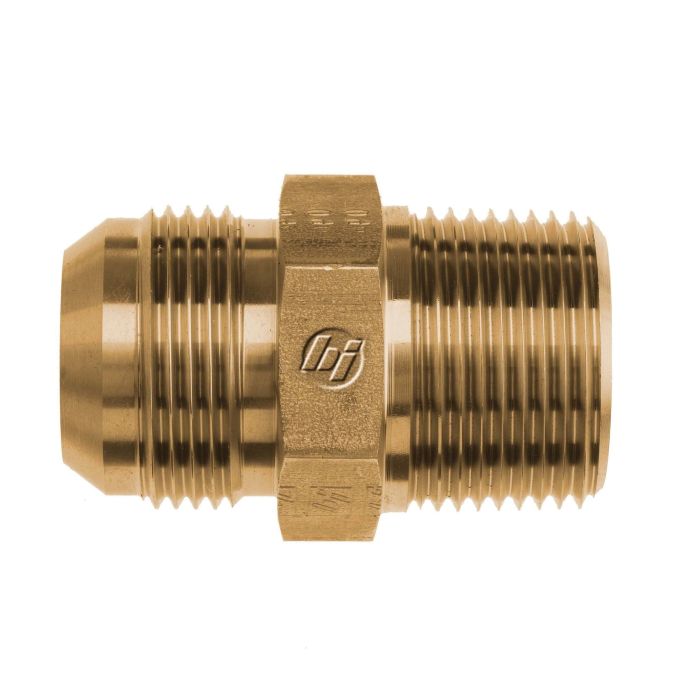

08MJ-06MP STRAIGHT BRASS

Ask A Question

Description & Features

The 08MJ-06MP Straight Brass adapter exemplifies industrial-grade reliability and superior functionality. Expertly crafted from straight brass this adapter is designed to meet the rigorous demands of industrial environments.

Manufactured by Brennan Industries Inc this component is part of the 2404 series incorporating a Male JIC SAE 37 Degree Flare and a Male NPTF adhering to SAE J514 and SAE J476 specifications respectively. The adapter's dimensions include a thread size of 3/4-16 (B1) and 3/8-18 (B2) with corresponding drill sizes of 0.391 mm and 0.406 mm.

With an overall length of 1.530 mm this brass adapter offers durability and precise fitting ensuring seamless integration into various industrial setups. Additionally California residents should note the Prop-65 warning associated with this product.

MPN: 2404-08-06-B

Supplier Part Number: 2404-08-06-B

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
1.009 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.53 in L
Finish
Natural
Fitting Type
Adapter
Hex Size
0.81 in
Material
Brass
Material Construction
UNS C36000 Brass
Series
2404 Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.391 in
Thread B2 Drill Dimensions
0.406 in
Thread Size
3/4-16 x 3/8-18

Product Questions & Answers (1)

Question by: Patty P on Sep 24, 2025, 7:33 PM
thread sizes on this one, is it a 3/4-16 on one end and 3/8-18 on the other, or am I reading that wrong?
Answer by: Customer Support on Sep 26, 2025, 1:32 PM
You've got it right. One end is a 3/4-16 Male JIC with a 37-degree flare, conforming to SAE J514. The other end is a 3/8-18 Male NPTF, built to SAE J476. So yes, two different thread sizes, which is exactly what this straight adapter is meant to handle when you're stepping between those two connection types.
