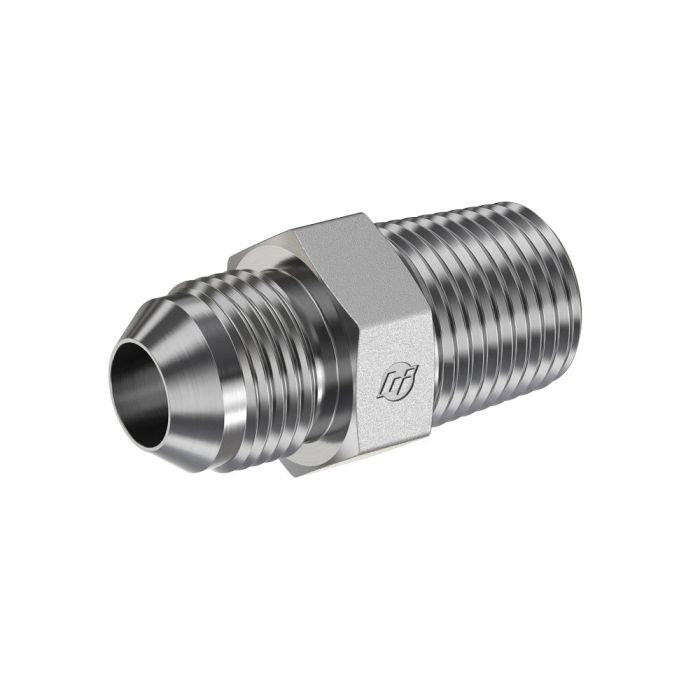

main product photo

08MJ-08MP STRAIGHT

Ask A Question

Description & Features

Manufactured by Brennan Industries Inc, the 08MJ-08MP Straight adapter offers reliable performance in industrial settings. This adapter is built from straight steel, ensuring durability and long-lasting use. It features a male JIC SAE 37 degree flare and a male NPTF with threads meeting SAE J514 and SAE J476 specifications respectively. The 08MJ-08MP Straight can handle a maximum dynamic pressure of 6,000 PSI.

Designed for precision, the adapter measures an overall length of 1.790 mm. The first thread B1 size is 3/4-16 with a drill size of 0.391 mm, while the second thread B2 size is 1/2-14 with a drill size of 0.531 mm. The series 2404 adapter is engineered to meet demanding industrial connectivity needs.

Supplier Part Number: 2404-08-08

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J514, SAE J476
Dimensions
1.79 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2404 Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.391 in
Thread B2 Drill Dimensions
0.531 in
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Terry K on Oct 24, 2025, 4:39 PM
Got a hydraulic line running 3/4-16 JIC on one end and need to tie into a 1/2-14 NPT port on a pump housing. This fitting work for that?
Answer by: Customer Support on Oct 26, 2025, 11:27 AM
That's what this adapter is built for. One end is a 3/4-16 male JIC with a 37-degree flare meeting SAE J514, and the other is a 1/2-14 male NPTF meeting SAE J476. Both threads are on the male side, so make sure your mating connections are female on both ends before ordering.
Question by: Ricky D on Apr 3, 2026, 12:24 PM
Is this adapter made of steel all the way through?
Answer by: Customer Support on Apr 4, 2026, 12:56 PM
the 08MJ-08MP Straight is made from straight steel, so it's durable for demanding industrial jobs.
Question by: Marvin J on Dec 4, 2025, 2:17 PM
got a hose with a 3/4-16 JIC male end and i need to go into 1/2-14 NPTF. is this the right straight adapter?
Answer by: Customer Support on Dec 5, 2025, 8:11 PM
For that combo, it matches up. One side is a male JIC SAE 37 degree flare with 3/4-16 threads (SAE J514), and the other side is a male NPTF with 1/2-14 threads (SAE J476).
