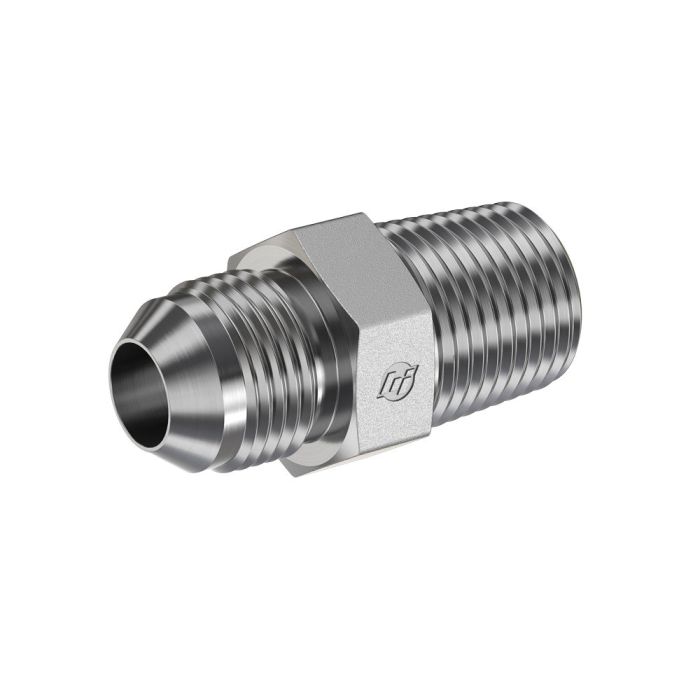

main product photo

12MJ-12MP STRAIGHT STNLS

Ask A Question

Description & Features

This straight stainless steel fitting, part number 12MJ-12MP STRAIGHT STNLS, is part of the 2404 series. It features a 1-1/16-12 male JIC 37-degree flare thread (SAE J514) on one end and a 3/4-14 male NPTF thread (SAE J476) on the other.

The fitting is constructed from durable stainless steel and designed to withstand dynamic pressures up to 5,000 PSI. With an overall length of 2.060 mm and a cubic inch space of 2.607, this fitting is suitable for a variety of hydraulic applications.

SKU: 2404-12-12-SS

Supplier Part Number (MPN): 2404-12-12-SS

Alternate Part Numbers: .2404-12-12-SS, .SS-2404-12-12, AJ12C, SS-2404-12-12

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
2.607 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
2.06 in L
Fitting Type
Adapter
Hex Size
1-1/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
2404 Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.609 in
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (1)

Question by: Stan T on Jul 24, 2025, 6:19 AM
Is this the right kinda fitting to use with stainless steel lines?
Answer by: Customer Support on Jul 25, 2025, 12:07 PM
This straight fitting is made from stainless steel, so it's definitely suitable for use with stainless steel lines. You shouldn't have any compatibility issues there.
