BRENNAN ADAPT SS

Ask A Question

Description & Features

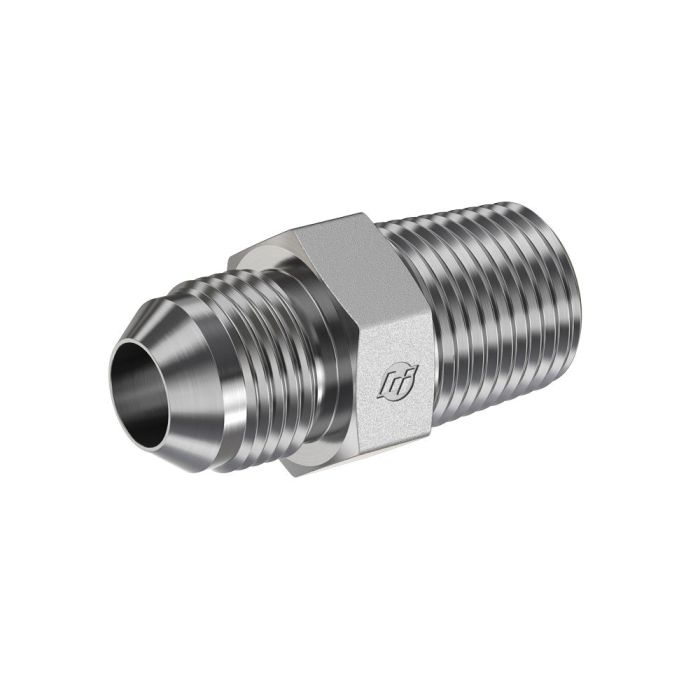

The Brennan Adapt SS is designed for optimal performance in high-pressure applications, featuring robust construction from straight stainless steel. Its dual-thread configuration includes a male JIC SAE 37-degree flare at B1 and a male NPTF at B2, ensuring secure and reliable connections. With a maximum dynamic pressure rating of 2,000 PSI, this adapter is ideal for demanding industrial environments.

Precision engineering is evident in its specifications, with B1 and B2 thread sizes of 1-5/8-12 and 2-11-1/2, respectively, adhering to SAE J514 and SAE J476 standards. The overall length of 2.730 mm optimizes space efficiency within hydraulic systems, while the stainless steel material provides exceptional resistance to corrosion and wear.

SKU: 2404-20-32-SS

Supplier Part Number (MPN): 2404-20-32-SS

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Dimension Standards
SAE J514, SAE J476
Dimensions
2.73 in L
Fitting Type
Adapter
Hex Size
2-5/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
2404 Series
Thread B1 Drill Dimensions
1.078 in
Thread B2 Drill Dimensions
1.938 in
Thread Size
1-5/8-12 x 2-11-1/2

Product Questions & Answers (1)

Question by: Dwight H on Jul 27, 2025, 4:58 PM
Is this adapter okay for systems running at, say, 1800 PSI? Just wanna make sure before I order.
Answer by: Customer Support on Jul 29, 2025, 9:44 AM
This adapter's rated for a max dynamic pressure of 2,000 PSI, so it should handle your 1800 PSI system just fine.
