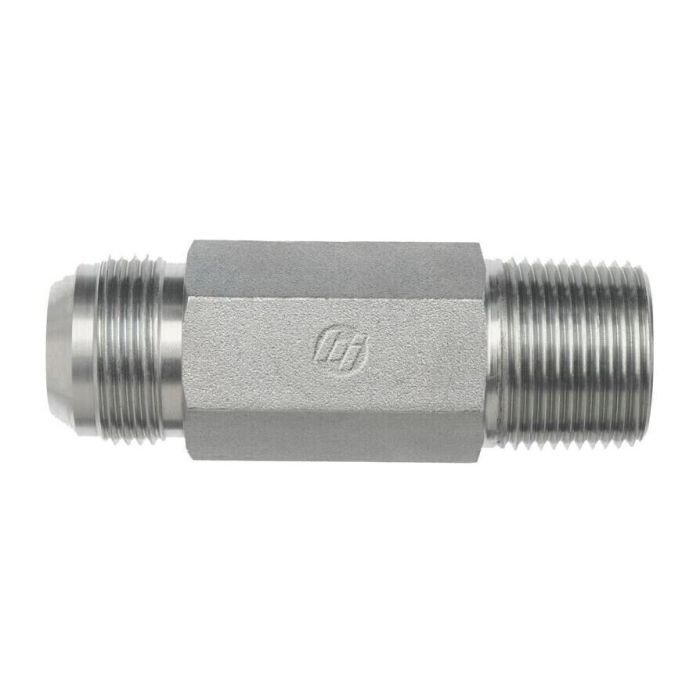

06MJ-08MP STRAIGHT LONG

Ask A Question

Description & Features

Engineered for high-pressure applications, the Brennan 06MJ-08MP Straight Long fitting offers a robust solution for connecting hydraulic components. This fitting is crafted from durable straight steel, ensuring long-lasting performance under demanding conditions. Designed with a male JIC SAE 37-degree flare on one end and a male NPTF on the other, it provides a secure and leak-free connection between compatible hydraulic systems.

With a maximum dynamic pressure rating of 6,000 PSI, this fitting is suitable for heavy-duty use. The overall length of 2.750 inches allows for versatility in installation, while the precision threads, 9/16-18 SAE J514 and 1/2-14 SAE J476, ensure compatibility with industry-standard components. Ideal for industrial applications, this fitting meets rigorous standards, making it a reliable choice for hydraulic systems requiring high integrity and performance.

SKU: 2404-L-06-08

Supplier Part Number (MPN): 2404-L-06-08

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
2.105 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
2.95 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2404-L Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.297 in
Thread B2 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Hank F on Sep 3, 2025, 7:52 PM
What kind of pressure can this fitting handle on the regular?
Answer by: Customer Support on Sep 5, 2025, 1:33 PM
This fitting is rated for a maximum dynamic pressure of 6,000 PSI, making it suitable for demanding hydraulic applications.
