08MJ-06MP STRAIGHT X-LONG

Description & Features

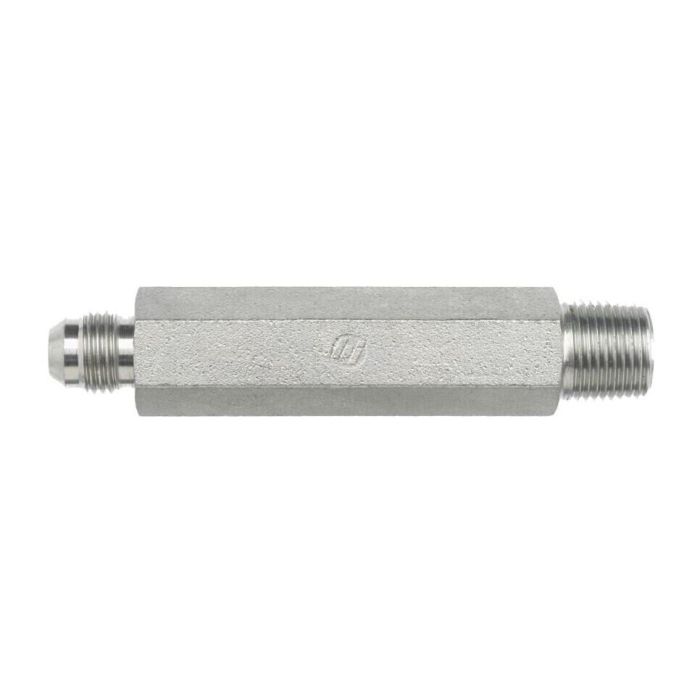

This straight steel fitting, with a 4.00" overall length, is designed for hydraulic applications requiring secure and reliable connections. The 08MJ-06MP STRAIGHT X-LONG features a 3/4-16 male JIC 37-degree flare thread (B1) according to SAE J514 standards, ensuring a leak-proof seal in demanding hydraulic environments.

On the opposite end, a 3/8-18 male NPTF thread (B2) conforming to SAE J476 provides a robust connection point. With a maximum dynamic pressure rating of 6,000 psi, this fitting is suitable for high-pressure hydraulic systems.

SKU: 2404-LL-08-06

Supplier Part Number (MPN): 2404-LL-08-06

Alternate Part Numbers: A202114-6-8S

Specifications

Connection Size 1 1/2 in	Connection Size 2 3/8 in	Connection Type Male JIC, MNPT	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE NPTF	Cubic Inch Space L x W x H Dimensions 2.637 cu-in	Dimension Standards SAE J514, SAE J476	Dimensions 4 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 0.81 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series 2404-LL Series	Thread 2 Drill Dimensions 0.406 in	Thread B1 Drill Dimensions 0.391 in	Thread B2 Drill Dimensions 0.406 in	Thread Size 3/4-16 x 3/8-18

Product Questions & Answers (1)

Question by: Keith W on Mar 13, 2026, 12:26 PM

What’s the overall length of this fitting? Just need to make sure it’ll fit in the space I got.

Answer by: Customer Support on Mar 15, 2026, 6:45 AM

The overall length on this straight fitting is 4 inches.
