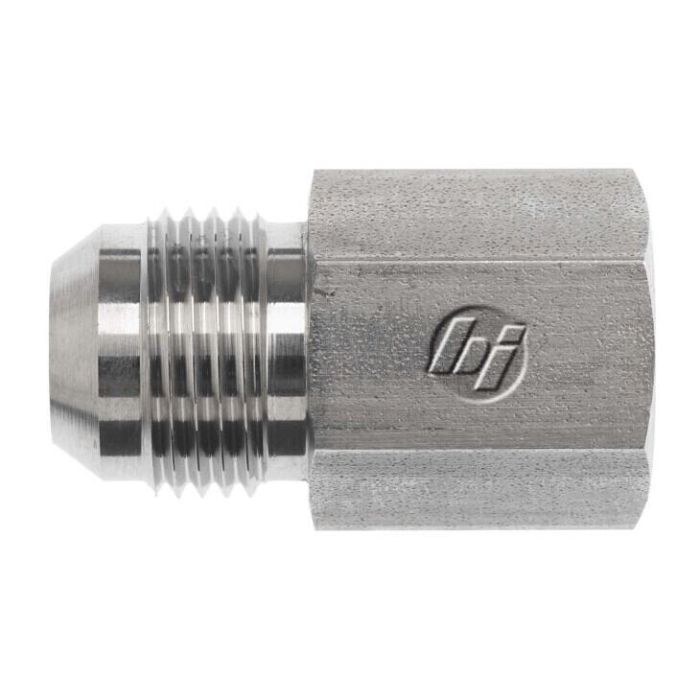

02MJ-02FP STRAIGHT

Description & Features

Manufactured by Brennan Industries Inc, the 02MJ-02FP Straight adapter is constructed from high-quality straight steel. This adapter is designed for industrial applications, providing dependable performance under a maximum dynamic pressure of 6,000 Psi. The overall length measures 1.120 mm.

Featuring a Male JIC SAE 37 Degree Flare thread on one end, compliant with SAE J514 specifications, and a Female NPTF thread on the other end, adhering to SAE J476 standards, it ensures secure and compatible connections. The thread sizes are 5/16-24 and 1/8-27 respectively, with corresponding drill sizes of 0.062 mm and 0.188 mm.

Engineered to meet rigorous industry standards, the 02MJ-02FP Straight adapter guarantees reliability and durability. Its robust construction and precise thread specifications make it a vital component for various industrial systems.

MPN: 2405-02-02

Supplier Part Number: 2405-02-02

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2405-02-02	Product Weight 0.05 lbs

Product Questions & Answers (2)

Question by: Sheila T on Jul 10, 2025, 8:53 PM

got a hose end with a 5/16-24 JIC flare, does this adapter screw into a 1/8-27 nptf port?

Answer by: Customer Support on Jul 12, 2025, 6:35 AM

On the JIC side, it is a male SAE 37 degree flare with 5/16-24 threads (SAE J514). The other end is a female NPTF thread, 1/8-27 (SAE J476), so it is made to thread onto a 1/8-27 male NPTF fitting or nipple.

Question by: Rod H on Dec 27, 2025, 9:15 AM

What kind of threads are on each end of this adapter, and are they gonna hold up to high-pressure lines?

Answer by: Customer Support on Dec 29, 2025, 6:57 AM

One end has a Male JIC SAE 37 Degree Flare thread sized at 5/16-24, built to SAE J514 spec. The other end runs a Female NPTF thread at 1/8-27, meeting SAE J476. Both thread types are well-suited for pressurized hydraulic connections, and the adapter is rated for up to 6,000 PSI dynamic pressure, so it handles serious line pressure without issue.
