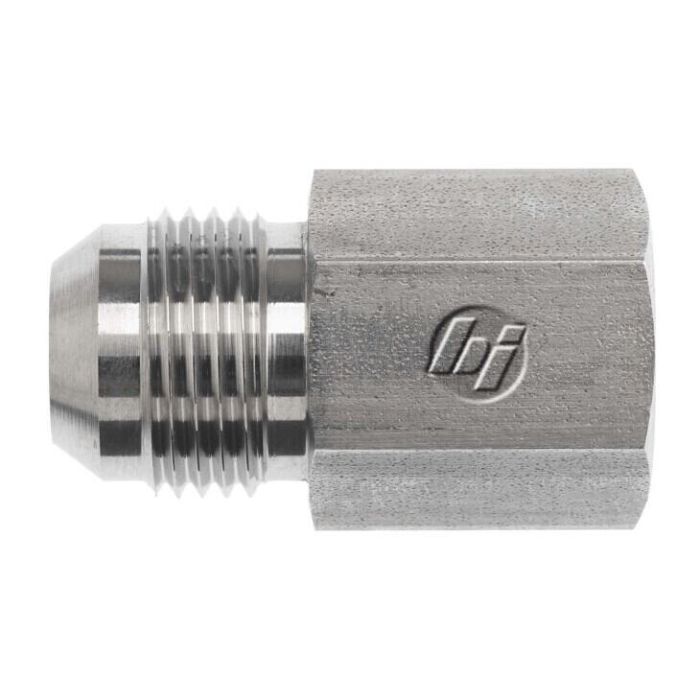

04MJ-02FP STRAIGHT

Description & Features

The 04MJ-02FP STRAIGHT from Brennan Industries Inc is an essential adapter designed for demanding applications. Crafted from straight steel, it ensures durability and high performance in various industrial environments. This adapter complies with SAE J514 and SAE J476 specifications, guaranteeing compatibility and reliability.

With a maximum dynamic pressure of 6,000 psi, it is built to withstand intense operational conditions. The adapter features a male JIC SAE 37-degree flare on one end and a female NPTF connection on the other, providing versatile connectivity options. It has an overall length of 1.190 mm, ensuring compact integration within your systems.

The 04MJ-02FP STRAIGHT is a reliable component in the 2405 series, engineered to meet rigorous standards. The male thread size is 7/16-20 with a drill size of 0.172 mm, while the female thread size is 1/8-27 with a drill size of 0.188 mm, offering precise fit and secure connections.

Supplier Part Number: 2405-04-02

PROP-65 WARNING: California Residents

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2405-04-02	Product Weight 0.05 lbs

Product Questions & Answers (3)

Question by: Rusty R on Oct 12, 2025, 8:32 PM

Does this adapter go from a JIC flare fitting over to an NPTF port, or is it the other way around?

Answer by: Customer Support on Oct 14, 2025, 2:45 PM

The male end is a 7/16-20 JIC SAE 37-degree flare, and the female end is a 1/8-27 NPTF. So you'd be threading the JIC side into a flare nut or swivel and the NPTF end onto a pipe-threaded port. That configuration is pretty common when you're tying a hydraulic line into a threaded port on a pump, valve, or manifold.

Question by: Rick T on Jun 22, 2025, 8:40 AM

What’s the highest pressure this fitting can handle?

Answer by: Customer Support on Jun 23, 2025, 7:51 PM

This adapter is rated for a maximum dynamic pressure of 6,000 psi, so it should hold up well in demanding hydraulic systems.

Question by: Rusty M on Dec 27, 2025, 4:52 PM

got a hose end that’s 7/16-20 JIC, will this screw into a 1/8-27 pipe port without any goofy adapters

Answer by: Customer Support on Dec 29, 2025, 6:02 AM

For hooking a male JIC 37 degree flare to a female NPTF port, that’s exactly what the 04MJ-02FP is built for. One side is male JIC SAE 37 degree flare, 7/16-20 thread, and the other side is female NPTF, 1/8-27.
