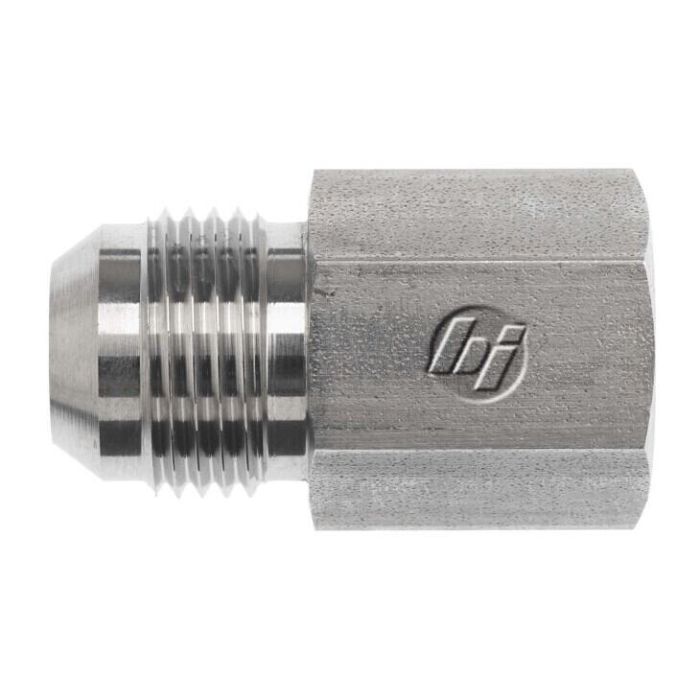

05MJ-06FP Straight

Description & Features

Constructed from durable straight steel, the 05MJ-06FP Straight fitting is designed to withstand a maximum dynamic pressure of 6,000 psi, making it ideal for demanding industrial applications. This product features a Male JIC SAE 37-degree flare connection on one end, adhering to the SAE J514 specification, and a Female NPTF connection on the other, conforming to SAE J476 standards. These specifications ensure reliable connectivity and performance in hydraulic systems.

With an overall length of 1.450 mm, the fitting provides precise integration into your system, facilitating efficient fluid transfer. The Brennan Industries brand ensures quality and compatibility, making it a trusted choice among industry professionals. This fitting is part of the Brennan Series 2405, known for its robustness and reliability in various industrial settings.

SKU: 2405-05-06

Supplier Part Number (MPN): 2405-05-06

Alternate Part Numbers: A2022-6-5S

Specifications

Connection Size 1 5/16 in	Connection Size 2 3/8 in	Connection Type FNPT, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female SAE NPTF	Dimension Standards SAE J514, SAE J476	Dimensions 1.06 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 7/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series 2405 Series	Thread 2 Drill Dimensions 0.406 in	Thread B1 Drill Dimensions 0.234 in	Thread B2 Drill Dimensions 0.406 in	Thread Size 1/2-20 x 3/8-18

Product Questions & Answers (1)

Question by: Keith H on Sep 30, 2025, 6:21 AM

What kind of pressure can this straight fitting handle?

Answer by: Customer Support on Oct 1, 2025, 9:04 AM

This fitting can handle a dynamic pressure up to 6,000 psi, making it suitable for some pretty demanding jobs.
