#12 MJIC X #8 FP

Description & Features

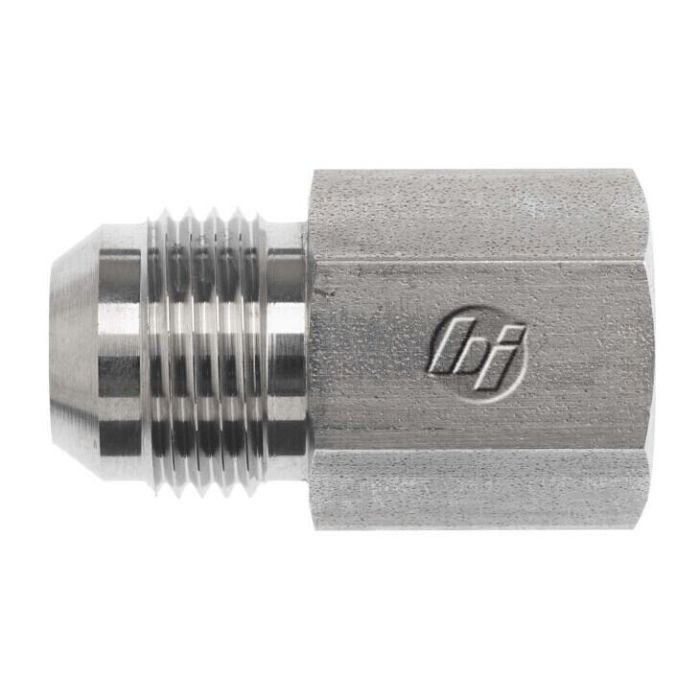

This straight steel fitting features a #12 MJIC X #8 FP connection. The #12 MJIC X #8 FP fitting is part of the 2405 series and is constructed from straight steel.

It features a male JIC SAE 37-degree flare thread and a female NPTF thread, manufactured to SAE J514 and SAE J476 specifications respectively. This fitting has a maximum dynamic pressure of 5,000 PSI.

SKU: 2405-12-08

Supplier Part Number (MPN): 2405-12-08

Alternate Part Numbers: A2022-8-12S

Specifications

Connection Size 1 3/4 in	Connection Size 2 1/2 in	Connection Type FNPT, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female SAE NPTF	Dimension Standards SAE J514, SAE J476	Dimensions 2.05 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-3/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series 2405 Series	Thread 2 Drill Dimensions 0.531 in	Thread B1 Drill Dimensions 0.609 in	Thread B2 Drill Dimensions 0.531 in	Thread Size 1-1/16-12 x 1/2-14

Product Questions & Answers (1)

Question by: Roy W on Nov 28, 2025, 12:19 PM

Can you tell me what kind of threads this thing uses? Just want to make sure it'll fit what I've got.

Answer by: Customer Support on Nov 30, 2025, 6:05 AM

This fitting uses a male JIC SAE 37-degree flare thread on one side, and a female NPTF thread on the other. These threads meet SAE J514 and SAE J476 specs, respectively.
