20MJ x 1-1/4 FNPT SS

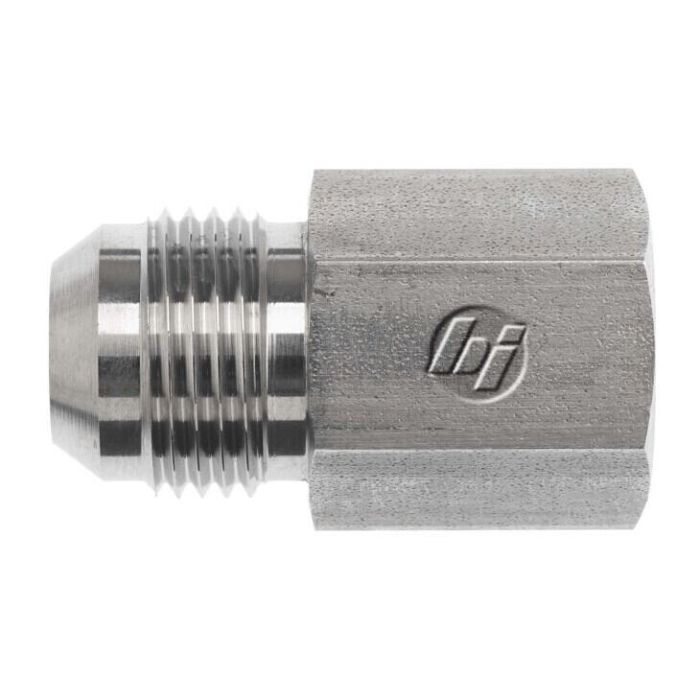

This straight stainless steel fitting features a 20MJ end and a 1-1/4 FNPT connection. The 20MJ x 1-1/4 FNPT SS fitting is part of the 2405 series and is made from straight stainless steel for durability and corrosion resistance.

The male JIC SAE 37-degree flare thread (B1) measures 1-5/8-12 with a drill size of 1.078 mm and adheres to SAE J514 specifications. The female NPTF thread (B2) measures 1-1/4-11-1/2 with a drill size of 1.250 mm and conforms to SAE J476 standards. It can withstand a maximum dynamic pressure of 2,500 psi.

SKU: 2405-20-20-SS

Supplier Part Number (MPN): 2405-20-20-SS
