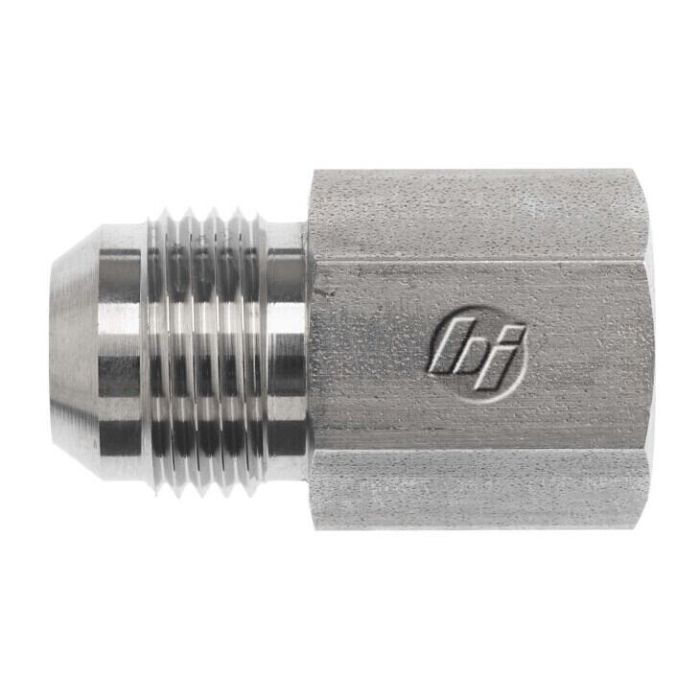

32MJ-32FP STRAIGHT

Description & Features

Manufactured by Brennan Industries Inc this versatile adapter offers exceptional reliability and precision. Designed to withstand a maximum dynamic pressure of 2 000 psi it is constructed from high-quality straight steel.

This adapter features a Male JIC SAE 37 degree flare thread on one end conforming to SAE J514 specifications while the other end is equipped with a Female NPTF thread adhering to SAE J476 standards. The 32MJ-32FP STRAIGHT adapter has an overall length of 2.970 mm.

The series 2405 adapter is engineered for high performance in various industrial settings providing strong and secure connections. The thread sizes for this adapter are 2-1/2-12 and 2-11-1/2 with respective drill sizes of 1.781 mm and 1.938 mm.

Users in California should be aware of the Prop-65 warning associated with this product.

Supplier Part Number: 2405-32-32

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2405-32-32	Product Weight 2.41 lbs

Product Questions & Answers (3)

Question by: Tammy P on Nov 29, 2025, 2:53 PM

Trying to hook a JIC line into a pipe port, is this the kind of fitting that does that?

Answer by: Customer Support on Nov 30, 2025, 4:19 PM

For adapting between those two styles, it fits the bill. One side is a male JIC SAE 37 degree flare thread built to SAE J514, and the other side is a female NPTF pipe thread built to SAE J476.

Question by: Roy S on Aug 21, 2025, 7:15 PM

does this adapter go from a JIC flare fitting over to a pipe thread connection, or am I reading the thread types wrong?

Answer by: Customer Support on Aug 23, 2025, 1:14 PM

You've got it right. One end is a 2-1/2-12 Male JIC SAE 37 degree flare, which meets SAE J514, and the other end is a 2-11-1/2 Female NPTF pipe thread per SAE J476. So yes, it bridges a JIC flare line to an NPTF port in a straight inline configuration.

Question by: Travis R on Feb 24, 2026, 9:06 AM

What's the highest pressure this fitting can handle without issues?

Answer by: Customer Support on Feb 26, 2026, 6:20 AM

This adapter is rated for a maximum dynamic pressure of 2,000 psi, so you should be good up to that level.
