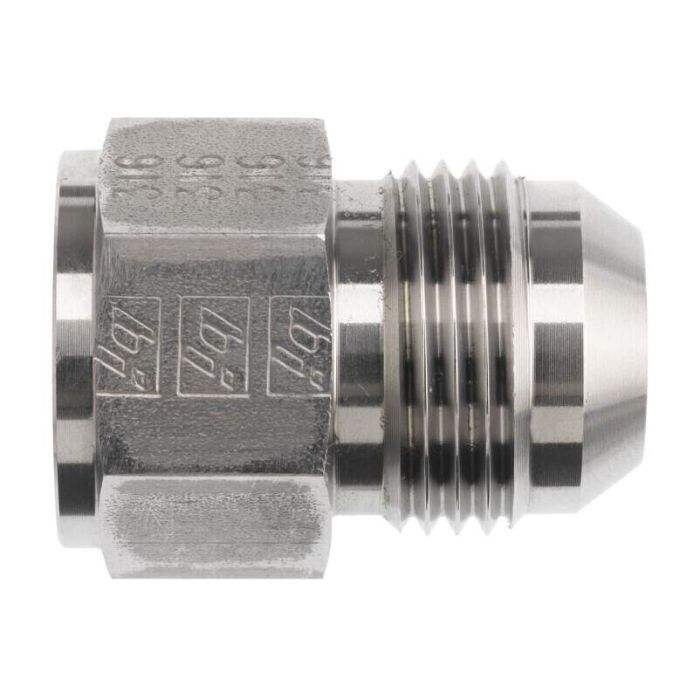

05FJ-08MJ STRAIGHT REDUCER

Ask A Question

Description & Features

This straight reducer features a female JIC SAE 37-degree flare on one side and a male JIC SAE 37-degree flare on the other. The 05FJ-08MJ STRAIGHT REDUCER is part of the 2406 series of fittings.

The reducer is constructed from steel and conforms to SAE J514 specifications for thread standards. The B1 thread size is 1/2-20, with a drill size of 0.234 mm. The B2 thread size is 3/4-16, with a drill size of 0.391 mm. Overall length is 1.270 mm.

SKU: 2406-05-08

Supplier Part Number (MPN): 2406-05-08

Alternate Part Numbers: A2215-5-8S

Specifications

Connection Size 1
5/16 in
Connection Size 2
1/2 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Female SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1.27 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
0.81 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2406 Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.234 in
Thread Size
1/2-20 x 3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Tommy B on Jul 12, 2025, 8:06 AM
So this reducer, it's steel right? Not gonna rust on me out in the field?
Answer by: Customer Support on Jul 14, 2025, 7:37 AM
This straight reducer is constructed from steel, providing good strength for hydraulic applications. While steel offers durability, consider additional coatings or rust inhibitors if used in environments with high moisture or corrosive elements.
