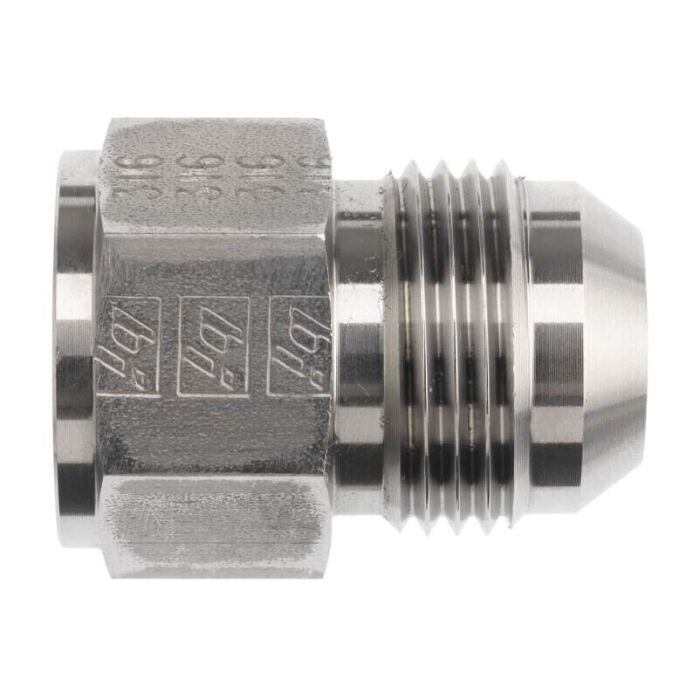

-6 FJIC x -6 MJIC 0.47 IN ORIFICE

Description & Features

Enhance your hydraulic systems with the precision-engineered -6 FJIC x -6 MJIC 0.47 IN ORIFICE fitting. This robust component, crafted from high-quality straight steel, features a 9/16-18 thread size on both the female JIC SAE 37-degree flare and male JIC SAE 37-degree flare ends, ensuring reliable and secure connections. Conforming to SAE J514 standards, it provides compatibility and performance assurance in various industrial applications.

The fitting includes a restricted orifice of 0.050 inches, designed to control flow rate effectively within the system. With an overall length of 1.180 mm, this component is suitable for precise hydraulic applications where space and flow regulation are critical. The compliance with PROP-65 ensures that the product meets safety standards for California residents.

SKU: 2406-06-06-R.050

Supplier Part Number (MPN): 2406-06-06-R.050

Alternate Part Numbers: 2406-06-R.050

Specifications

Additional Information 0.05 in Orifice	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female JIC, Male JIC	Connection Type 1 Female SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 1.18 in L	Finish Zinc Trivalent	Fitting Type Reducer	Hex Size 11/16 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series 2406-RESTRICTED Series	Thread B1 Drill Dimensions 0.297 in	Thread B2 Drill Dimensions 0.05 in	Thread Size 9/16-18

Product Questions & Answers (1)

Question by: Carl G on Oct 14, 2025, 4:58 PM

Just to be clear, both ends are the same size and thread?

Answer by: Customer Support on Oct 16, 2025, 6:40 AM

Correct, this fitting features a 9/16-18 thread size on both the female JIC SAE 37-degree flare and male JIC SAE 37-degree flare ends.
