08FJ-05MJ STRAIGHT REDUCER

Ask A Question

Description & Features

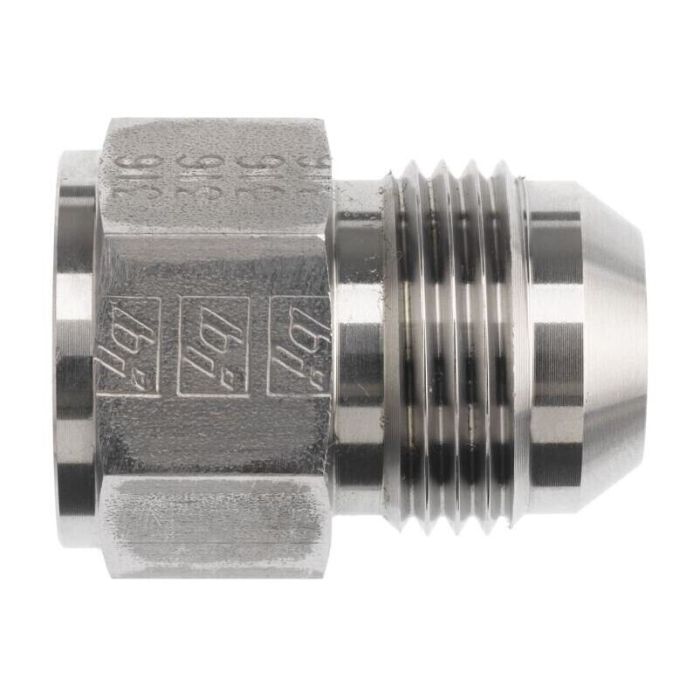

Designed for reducing between two JIC connections, the 08FJ-05MJ Straight Reducer connects a 3/4-16 Female JIC SAE 37-degree flare end to a 1/2-20 Male JIC SAE 37-degree flare end in a single-piece rigid steel body. Both threads conform to SAE J514, making this fitting suitable for hydraulic lines where a direct inline size reduction is required without bends or offsets.

Manufactured by Brennan Industries from straight steel, this fitting measures 1.450 mm in overall length and is built for use in hydraulic systems where JIC fittings are the specified connection standard. The one-piece rigid construction supports a secure, leak-resistant connection at both ends.

SKU: 2406-08-05

Supplier Part Number (MPN): 2406-08-05

Alternate Part Numbers: A221501-8-5S

Specifications

Connection Size 1
1/2 in
Connection Size 2
5/16 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Female SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1.3 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
7/8 in
l Dimensions
1.45 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2406 Series
Thread 2 Drill Dimensions
0.234 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
1/2-20 x 3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Carl P on Apr 30, 2025, 12:55 PM
Will this here reducer work if I'm connecting, like, a 3/4 inch line to a 1/2 inch one?
Answer by: Customer Support on May 1, 2025, 2:41 PM
This straight reducer is indeed designed to connect a 3/4-16 female JIC to a 1/2-20 male JIC, so it should do the trick for ya.
