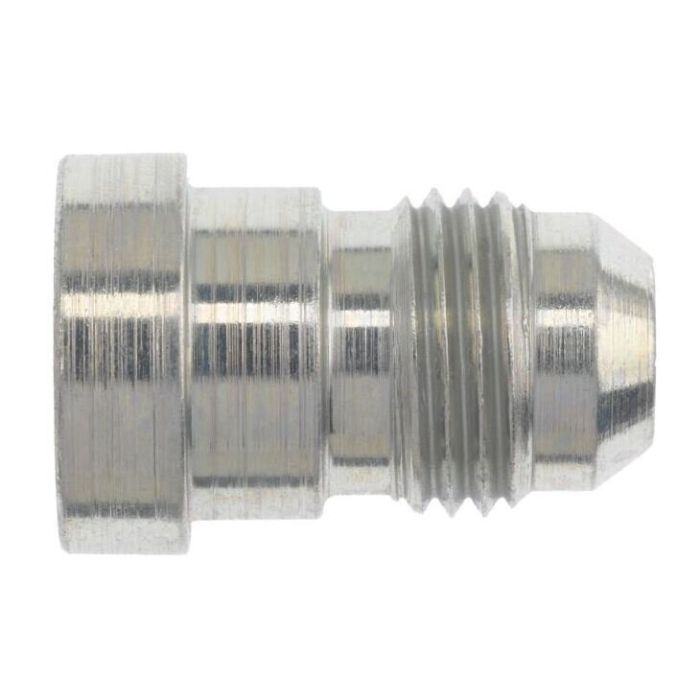

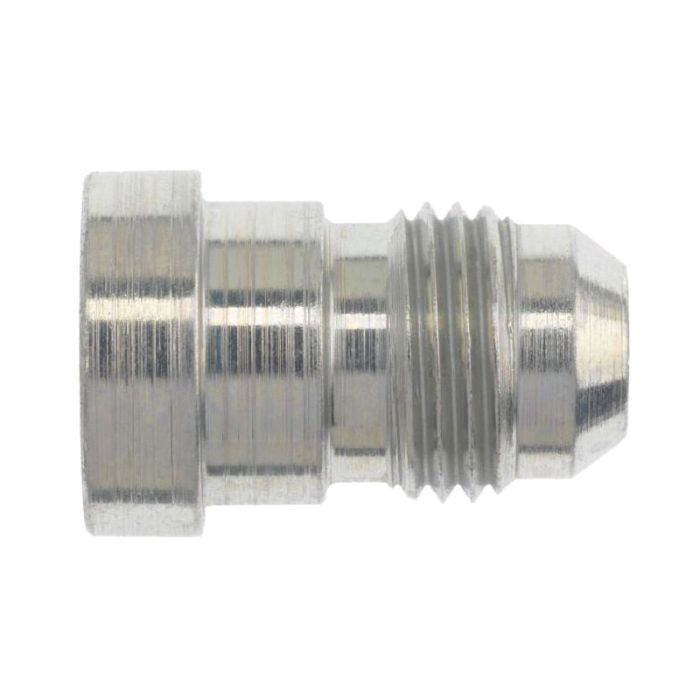

STRAIGHT INSERT ONLY STNLS

Ask A Question

Description & Features

This STRAIGHT INSERT ONLY STNLS features a female JIC SAE 37 Degree Flare connection on one end and a male JIC SAE 37 Degree Flare connection on the other.

It is constructed from durable straight stainless steel and conforms to SAE J514 specifications.

The thread sizes are Tube OD 5/8 and 9/16-18.

SKU: 2406-10-06-IN-SS

Supplier Part Number (MPN): 2406-10-06-IN-SS

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Female SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1.4 in L
Fitting Type
Insert
Hex Size
1 x 1 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
2406 Series
Thread B1 Drill Dimensions
0.484 in
Thread B2 Drill Dimensions
0.297 in
Thread Size
7/8-14 x 9/16-18

Product Questions & Answers (1)

Question by: Duane A on Dec 11, 2025, 8:53 AM
So this is just the insert, right? No actual hose or anything?
Answer by: Customer Support on Dec 12, 2025, 6:41 PM
That's correct, this is just the straight insert. It features a female JIC SAE 37 Degree Flare connection on one end and a male JIC SAE 37 Degree Flare connection on the other.
