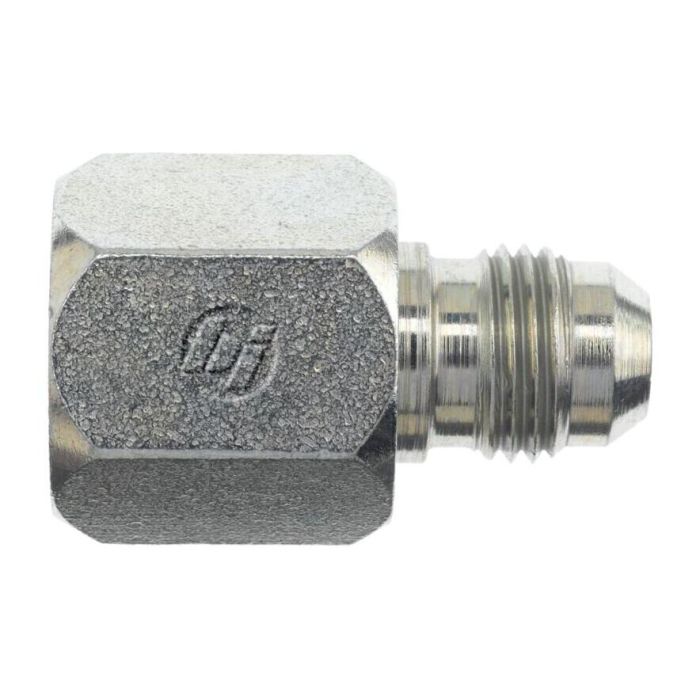

FJ-MJ Strt Red

Description & Features

This straight reducing adapter connects a 1-1/16-12 Female JIC SAE 37-degree flare (Thread B1) to a 3/4-16 Male JIC SAE 37-degree flare (Thread B2), making it well suited for hydraulic lines where a size reduction between JIC fittings is required. Both thread ends conform to SAE J514, ensuring compatibility with standard JIC hydraulic assemblies.

The FJ-MJ Strt Red is manufactured from straight steel and supplied by Brennan Industries as part of the 2406-2PC series. The two-piece design includes a tube nut and insert, providing a secure, leak-resistant connection at the flare seat. With an overall length of 1.787 inches, this compact reducer suits installations where space and line routing are practical considerations.

SKU: 2406-12-08-2PC

Supplier Part Number (MPN): 2406-12-08-2PC

Specifications

Connection Size 1 3/4 in	Connection Size 2 1/2 in	Connection Type Female JIC, Male JIC	Connection Type 1 Female SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 1.56 in L	Finish Trivalent Zinc-Plated	Fitting Type Reducer	Hex Size 1-1/4	l2 Dimensions 1.19 in	l Dimensions 1.787 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series 2406-2PC Series	Thread 2 Drill Dimensions 0.391 in	Thread B1 Drill Dimensions 0.609 in	Thread Size 3/4-16 x 1-1/16-12

Product Questions & Answers (1)

Question by: Kurt C on Dec 26, 2025, 4:47 PM

Hey, will this here reducer work to join up some standard JIC hydraulic lines if I need to go from a 1-1/16 inch size down to a 3/4 inch?

Answer by: Customer Support on Dec 27, 2025, 5:51 PM

this reducer is made just for that kinda thing. It'll connect a 1-1/16-12 female JIC to a 3/4-16 male JIC, both using the standard SAE 37-degree flare. Makes it easy to step down the size in your hydraulic lines.
