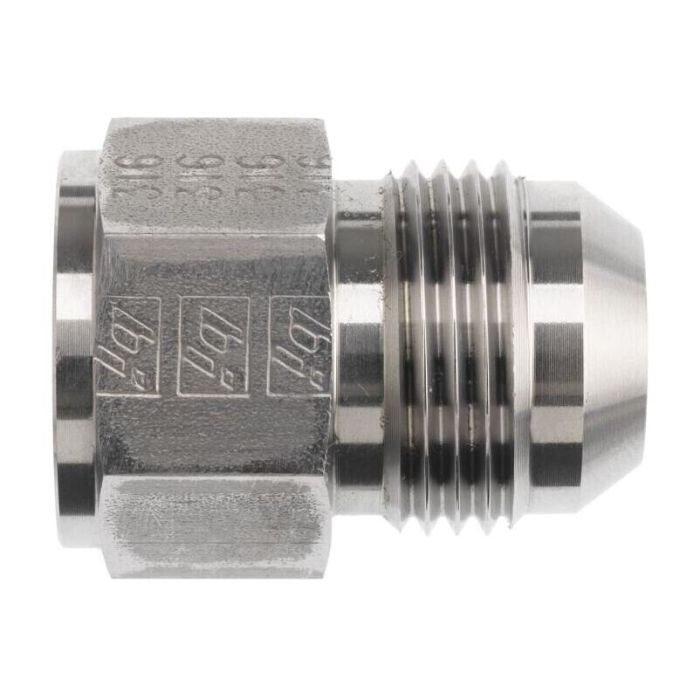

#32 FJ (RIGID) X #24 MJ ST.

Description & Features

This straight reducer adapts between different JIC fitting sizes in hydraulic systems. It connects a #32 Female JIC 37-degree flared fitting to a #24 Male JIC 37-degree flared fitting.

The #32 FJ (RIGID) X #24 MJ ST. fitting is manufactured from straight steel and conforms to SAE J514 standards. Its B1 thread measures 2-1/2-12 with a 1.781 mm drill size, while the B2 thread measures 1-7/8-12 with a 1.312 mm drill size. The fitting has an overall length of 2.744 mm.

SKU: 2406-32-24

Supplier Part Number (MPN): 2406-32-24

Alternate Part Numbers: A221501-32-24S

Specifications

Brand BRENNAN	Connection Size 1 2 in	Connection Size 2 1-1/2 in	Connection Type Female JIC, Male JIC	Connection Type 1 Female SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 2.52 in L	Finish Trivalent Zinc-Plated	Fitting Type Reducer	Hex Size 2-7/8 in	l Dimensions 2.744 in	Material Steel	Material Construction 12L14/C1045 Steel	Series 2406 Series	Thread 2 Drill Dimensions 1.312 in	Thread B1 Drill Dimensions 1.781 in	Thread Size 2-1/2-12 x 1-7/8-12

Similar Products

Model Number	Connection Size 1	Connection Size 2	Material Construction	Thread Size	Hex Size
2406-03-04	3/16 in	1/4 in	12L14/C1045 Steel	7/16-20 x 3/8-24	1/2 in
2406-04-02	1/4 in	1/8 in	12L14/C1045 Steel	7/16-20 x 5/16-24	0.563 in
2406-04-03 Steel Female To Male JIC Adapter	1/4 in	3/16 in	AISI 12L14/C1045 Steel	7/16-20 x 3/8-24	0.563 in
2406-04-04	1/4 in	1/4 in	12L14/C1045 Steel	7/16-20	0.563 in
2406-04-05	1/4 in	5/16 in	12L14/C1045 Steel	1/2-20 x 7/16-20	5/8 in
2406-04-06 Steel Female To Male JIC Adapter	1/4 in	3/8 in	AISI 12L14/C1045 Steel	9/16-18, 7/16-20	5/8 in
2406-04-08	1/4 in	1/2 in	12L14/C1045 Steel	3/4-16 x 7/16-20	0.81 in
2406-05-04 Steel Female To Male JIC Adapter	5/16 in	1/4 in	AISI 12L14/C1045 Steel	1/2-20 x 7/16-20	5/8 in
2406-05-06 Steel Female To Male JIC Adapter	5/16 in	3/8 in	AISI 12L14/C1045 Steel	9/16-18 x 1/2-20	5/8 in
2406-05-08	5/16 in	1/2 in	12L14/C1045 Steel	1/2-20 x 3/4-16	0.81 in
2406-06-04	3/8 in	1/4 in	12L14/C1045 Steel	9/16-18, 7/16-20	11/16 in
2406-06-05	3/8 in	5/16 in	12L14/C1045 Steel	9/16-18 x 1/2-20	11/16 in
2406-06-06	3/8 in	3/8 in	12L14/C1045 Steel	9/16-18	11/16 in
2406-06-08 Steel Female To Male JIC Adapter	3/8 in	1/2 in	AISI 12L14/C1045 Steel	3/4-16, 9/16-18	0.81 in
2406-08-04	1/2 in	1/4 in	12L14/C1045 Steel	3/4-16 x 7/16-20	7/8 in
2406-08-05	1/2 in	5/16 in	12L14/C1045 Steel	1/2-20 x 3/4-16	7/8 in
2406-08-06 Steel Female To Male JIC Adapter	1/2 in	3/8 in	AISI 12L14/C1045 Steel	3/4-16, 9/16-18	7/8 in
2406-08-08	1/2 in	1/2 in	12L14/C1045 Steel	3/4-16	7/8 in
2406-08-10 Steel Female To Male JIC Adapter	1/2 in	5/8 in	AISI 12L14/C1045 Steel	7/8-14 x 3/4-16	0.94 in
2406-08-12	1/2 in	3/4 in	12L14/C1045 Steel	3/4-16 x 1-1/16-12	1-1/8 in
2406-10-04 Steel Female To Male JIC Adapter	5/8 in	1/4 in	AISI 12L14/C1045 Steel	7/8-14 x 7/16-20	1 x 1 in
2406-10-06	5/8 in	3/8 in	12L14/C1045 Steel	7/8-14 x 9/16-18	1 x 1 in
2406-10-08	5/8 in	1/2 in	12L14/C1045 Steel	7/8-14 x 3/4-16	1 x 1 in
2406-10-12	5/8 in	3/4 in	12L14/C1045 Steel	7/8-14 x 1-1/16-12	1-1/8 in
2406-10-16	5/8 in	1 in	12L14/C1045 Steel	7/8-14 x 1-5/16-12	1-3/8 in
2406-12-04 Steel Female To Male JIC Adapter	3/4 in	1/4 in	AISI 12L14/C1045 Steel	1-1/16-12 x 7/16-20	1-1/4
2406-12-06	3/4 in	3/8 in	12L14/C1045 Steel	1-1/16-12 x 9/16-18	1-1/4
2406-12-08	3/4 in	1/2 in	12L14/C1045 Steel	3/4-16 x 1-1/16-12	1-1/4
2406-12-10	3/4 in	5/8 in	12L14/C1045 Steel	7/8-14 x 1-1/16-12	1-1/4
2406-12-12	3/4 in	3/4 in	12L14/C1045 Steel	1-1/16-12	1-1/4
2406-12-16	3/4 in	1 in	12L14/C1045 Steel	1-5/16-12 x 1-1/16-12	1-3/8 in
2406-12-20	3/4 in	1-1/4 in	12L14/C1045 Steel	1-5/8-12 x 1-1/16-12	1.688 in
2406-14-06	7/8 in	3/8 in	12L14/C1045 Steel	9/16-18, 1-3/16-12	1-3/8 in
2406-14-08	7/8 in	1/2 in	12L14/C1045 Steel	1-3/16-12, 3/4-16	1-3/8 in
2406-14-10	7/8 in	5/8 in	12L14/C1045 Steel	1-3/16-12, 7/8-14	1-3/8 in
2406-14-12 Steel Female To Male JIC Adapter	7/8 in	3/4 in	AISI 12L14/C1045 Steel	1-3/16-12 x 1-1/16-12	1-3/8 in
2406-14-16	7/8 in	1 in	12L14/C1045 Steel	1-3/16-12 x 1-5/16-12	1-3/8 in
2406-16-04	1 in	1/4 in	12L14/C1045 Steel	1-5/16-12 x 1-5/16-12 x 7/16-20	1-1/2 in
2406-16-06	1 in	3/8 in	12L14/C1045 Steel	1-5/16-12 x 9/16-18	1-1/2 in
2406-16-08	1 in	1/2 in	12L14/C1045 Steel	1-5/16-12, 3/4-16	1-1/2 in
2406-16-10	1 in	5/8 in	12L14/C1045 Steel	7/8-14 x 1-5/16-12	1-1/2 in
2406-16-12	1 in	3/4 in	12L14/C1045 Steel	1-5/16-12 x 1-1/16-12	1-1/2 in
2406-16-14	1 in	7/8 in	12L14/C1045 Steel	1-3/16-12 x 1-5/16-12	1-1/2 in
2406-16-16	1 in	1 in	12L14/C1045 Steel	1-3/16-12 x 1-5/16-12	1-1/2 in
2406-16-20	1 in	1-1/4 in	12L14/C1045 Steel	1-5/8-12 x 1-5/16-12	1.688 in
2406-16-24	1 in	1-1/2 in	12L14/C1045 Steel	1-7/8-12 x 1-5/16-12	2 in
2406-20-06	1-1/4 in	3/8 in	12L14/C1045 Steel	1-5/8-12 x 9/16-18	2 in
2406-20-08	1-1/4 in	1/2 in	12L14/C1045 Steel	1-5/8-12 x 3/4-16	2 in
2406-20-10	1-1/4 in	5/8 in	12L14/C1045 Steel	1-5/8-12 x 7/8-14	2 in
2406-20-12 Steel Female To Male JIC Adapter	1-1/4 in	3/4 in	AISI 12L14/C1045 Steel	1-5/8-12 x 1-1/16-12	2 in
2406-20-16	1-1/4 in	1 in	12L14/C1045 Steel	1-5/8-12 x 1-5/16-12	2 in
2406-20-24 Steel Female To Male JIC Adapter	1-1/4 in	1-1/2 in	AISI 12L14/C1045 Steel	1-7/8-12, 1-5/8-12	2 in
2406-24-08	1-1/2 in	1/2 in	12L14/C1045 Steel	1-7/8-12 x 3/4-16	2-1/4 in
2406-24-12	1-1/2 in	3/4 in	12L14/C1045 Steel	1-7/8-12 x 1-1/16-12	2-1/4 in
2406-24-16	1-1/2 in	1 in	12L14/C1045 Steel	1-7/8-12 x 1-5/16-12	2-1/4 in
2406-24-20	1-1/2 in	1-1/4 in	12L14/C1045 Steel	1-7/8-12, 1-5/8-12	2-1/4 in
2406-24-32	1-1/2 in	2 in	12L14/C1045 Steel	2-1/2-12 x 1-7/8-12	2-5/8 in
2406-32-16	2 in	1 in	12L14/C1045 Steel	2-1/2-12 x 1-5/16-12	2-7/8 in
2406-32-20	2 in	1-1/4 in	12L14/C1045 Steel	2-1/2-12 x 1-5/8-12	2-7/8 in
