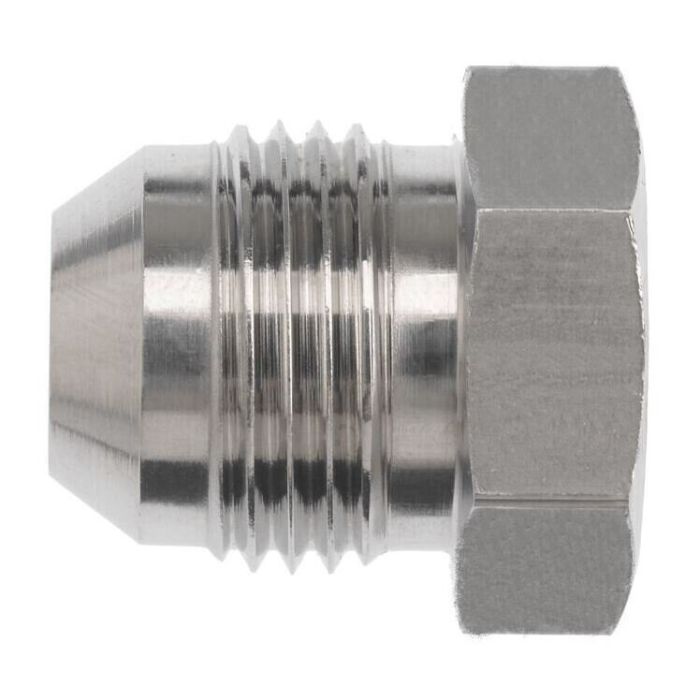

08MJ PLUG

Description & Features

The 08MJ Plug, designed by Brennan Industries Inc., offers optimal performance with a maximum dynamic pressure capacity of 6,000 psi. Crafted from straight steel, this component ensures durability and reliability in demanding environments. The overall length of 0.940 mm and length L2 of 0.250 mm provide a precise fit for applications requiring the 3/4-16 threaded MALE JIC SAE 37-degree flare.

Conforming to SAE J514 specifications, the 08MJ Plug is ideal for use in high-pressure systems. Its thread size of 0.391 mm enables secure connections, making it a reliable choice for industrial needs.

MPN: 2408-08

Supplier Part Number: 2408-08

California Residents: PROP-65 WARNING

Specifications

Connection Type Male JIC	Cubic Inch Space L x W x H Dimensions 0.62 cu-in	Dimension Standards SAE J514	Dimensions 0.94 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	l2 Dimensions 1/4 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 6000 psi	Series 2408 Series	Thread B1 Drill Dimensions 0.391 in	Thread Size 3/4-16

Product Questions & Answers (3)

Question by: Hubert F on Jun 23, 2025, 8:50 AM

Reckon this plug'll hold up in a high-pressure hydraulic system without failin'?

Answer by: Customer Support on Jun 25, 2025, 6:27 AM

Designed for demanding environments, the 08MJ Plug from Brennan Industries has a maximum dynamic pressure capacity of 6,000 psi, so it ought to do the job.

Question by: Brent C on Jul 1, 2025, 2:39 PM

Got a 3/4-16 male JIC fitting that needs to be capped off on a high-pressure line. this plug rated high enough to handle it?

Answer by: Customer Support on Jul 3, 2025, 6:55 AM

At 6,000 psi maximum dynamic pressure, it holds up well in demanding hydraulic systems. The 3/4-16 male JIC SAE 37-degree flare thread matches that fitting size directly, so you're looking at a solid cap-off solution for that line without having to worry about pressure limits being the weak point.

Question by: Bonnie F on Nov 8, 2025, 7:41 PM

trying to cap off a 3/4-16 male JIC 37 degree flare port, is this the right plug?

Answer by: Customer Support on Nov 10, 2025, 6:36 AM

For a 3/4-16 MALE JIC SAE 37 degree flare connection, the thread type and spec match up on this plug, and it’s built to SAE J514.
